Coaxial Cable Stripper, Coaxial Cable Stripping Machine

Views: 277 Author: Site Editor Publish Time: Origin: Site

This semi automatic multi-layer coaxial cable stripping machine is suitable for peeling coaxial cable, triaxial cable and shielded cable. Processing wire range: 0.8-7.0mm, such as rf1.13, rf1.78, rf3.16, rg58, rg59 and rg1.41.

Model: YH-6806/YH-6806D

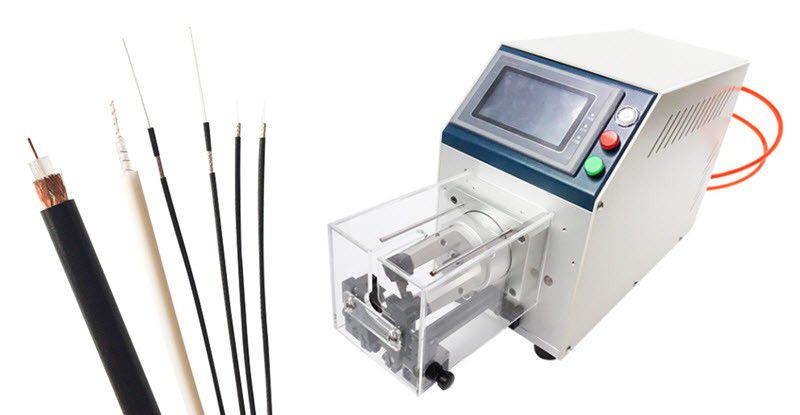

Coaxial Cable Stripping Machine

Features

  • Cable processing type: Coaxial cable, triaxial cable, shielded cable and rigid cable.

  • Processing wire range: 0.8-7.0mm, such as rf1.13, rf1.78, rf3.16, rg58, rg59, rg1.41, etc.

  • The machine provides flexible storage and recall of data for easy processing of cables of different diameters.

  • The blade is made of Swiss tungsten steel to ensure the life and accuracy of the blade.

Contact us for details: sales@yuanhanequip.com


Operation video of coaxial cable stripping machine


Specifications

Model YH-6806 YH-6806D
Cable diameter 0.81-7mm 1-10mm
Maximum stripping length 47mm 65mm
Cutting depth unit 0.01mm 0.01mm
Max. stripping layers 9 layers 9 layers
Weight 24KG 24KG
Power supply 110V/220V/50HZ 110V/220V/50HZ
Dimension 600x185x280 mm 600x185x280 mm


×
