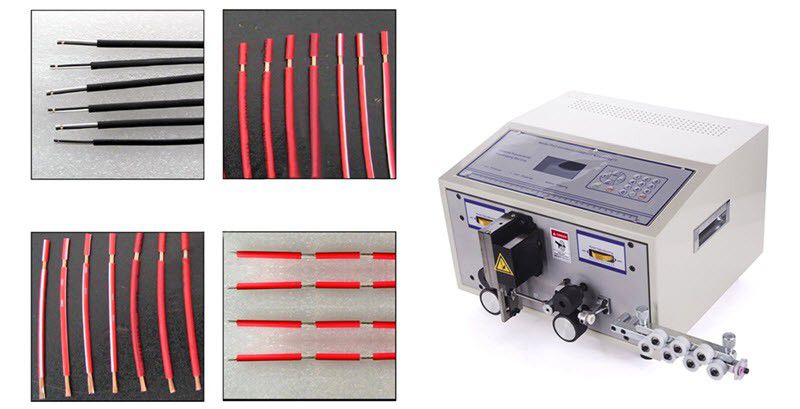

Mini Cable Stripping Machine YH-BC

Views: 328 Author: Site Editor Publish Time: Origin: Site

This fully automatic wire cutting and stripping machine is suitable for processing of small wires and mini cables. Processing wire range: 0.1-2.5 sq mm(AWG13#-AWG27#).

Model: YH-BC

mini cable stripping machine

Features

  • Suitable for PVC cables, Teflon cables, Silicone cables, glass fiber cables and much more

  • Processing wire range: 0.1-2.5 sq mm(AWG13#-AWG27#)

  • LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision

  • Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys

  • The cutting length can be set according to request

  • One-time cutting and stripping, saving labor and time and increasing productivity

Contact us for details: sales@yuanhanequip.com


Operation video of the small mini cable cutting and stripping machine


Specifications

Model  YH-BC
Cutting length 1-9999mm
Cutting tolerance (0.2±0.002×L)mm
Stripping length Head 0-35, Tail 0-15mm
Middle strip 11 sections
Wire range 0.1-2.5mm(AWG13#-AWG27#)
Conduit diameter ¢6
Speed(pcs/h) 3000-8000pcs/h (L=100mm)
Power  160(W)
Voltage 220/110(V)
Gross Weight 32kg
Machine size 390*350*255mm
×
