Copper Lugs Crimping Machine, Cable Copper Lugs Hexagon Shape Crimping Machine

Views: 553 Author: Site Editor Publish Time: Origin: Site

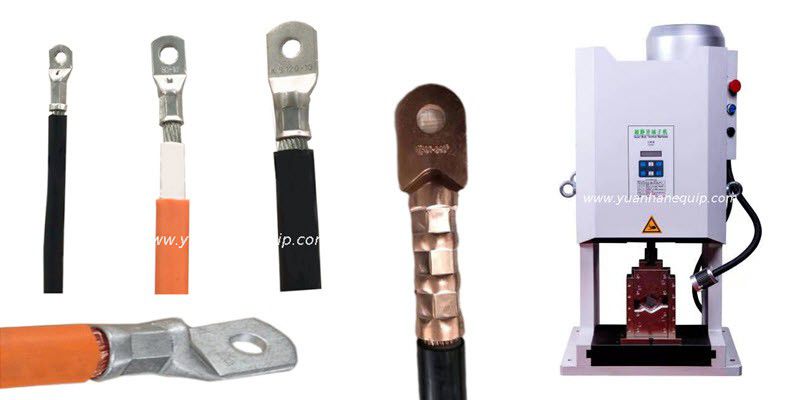

This is a semi-automatic servo motor driven cable copper lugs terminal crimping machine. It features high crimping accuracy and stable crimping quality, which is suitable for processing of new energy wiring harness.

Cable Copper Lugs Hexagon Shape Crimping Machine


Features

  • Servo motor drive, high crimping accuracy and stable crimping quality

  • Touch screen control, simple operation.

  • Designed for terminal crimping with high precision requirements, suitable for processing of new energy wiring harness.

  • With crimping error alarm function: overlapping crimping terminal alarm (protecting the blade), crimping un-stripped cable alarm, cutting core wire alarm, no terminal crimping alarm.

Contact us: sales@yuanhanequip.com


Operation video of the cable copper lugs crimping machine


Technical Data

Model Stroke Motor Power Crimping Force Weight Dimensions (mm)
YH-SF8T 30mm 2.3KW 80KN 135KG 400*380*740
YH-SF10T 30mm 2.3KW 100KN 138KG 400*380*740
YH-SF12T 30mm 3.6KW 120KN 150KG 300*380*820
YH-SF15T 30mm 3.6KW 150KN 350KG 520*540*980
YH-SF20T 40mm 5.5KW 200KN 380KG 400*540*1060
YH-SF30T 30mm 7.5KW 300KN 370KG 520*540*1030


×
