Flat Ribbon Cable Cutting Stripping and Slitting Machine

Views: 629 Author: Site Editor Publish Time: Origin: Site

This flat ribbon cable cutting and stripping machine is suitable for all kinds of flat cables (e.g. ribbon cables, multi-core flat cables, etc.). It can process flat cable cutting, splitting, half-stripping, and full stripping at one time.

Model: YH-BPX2

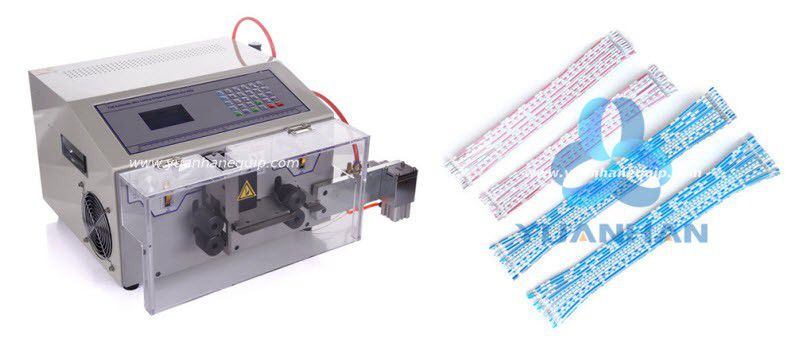

flat ribbon cable cutting stripping and slitting machine

Features

  • This flat ribbon cable cutting stripping and slitting machine adopts hybrid drive and is a fully automatic CNC equipment that introduces advanced technologies from Japan and Taiwan;

  • Being able to process different kinds of flat cables;

  • LCD touch screen dialog mode, beautiful appearance, simple operation, easy maintenance, stable performance, fast speed, and high precision;

  • Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toys;

  • One-time cutting and stripping, and splitting at the same time;

  • Saving labor and time and increasing productivity

Contact us: sales@yuanhanequip.com


Operation video of the flat ribbon cable cutting stripping and splitting machine


Technical Data

Model YH-BPX2
Cutting length 1-100000mm
Cutting tolerance (0.0001xL)mm
Strip length

Head: 0-15mm

Tail:0-15mm
Middle strip  13 Sections
Wire range  2-12P
Conduit diameter 100x22x2.8mm
Speed (pcs/h) L=100mm, 3000-5000p
Power  450W
Voltage 220/110(V)
Gross weight  40kg


×
