France 2-Pin Plugs Crimping Machine, French Electrical Plugs Crimping Machine

Views: 669 Author: Site Editor Publish Time: Origin: Site

This is a semi-automatic cable connector crimping machine. It is suitable for crimping loose piece terminals such as 2-Pin France power cord plugs with vibration plate feeding. The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.

Model: YH-ZDP

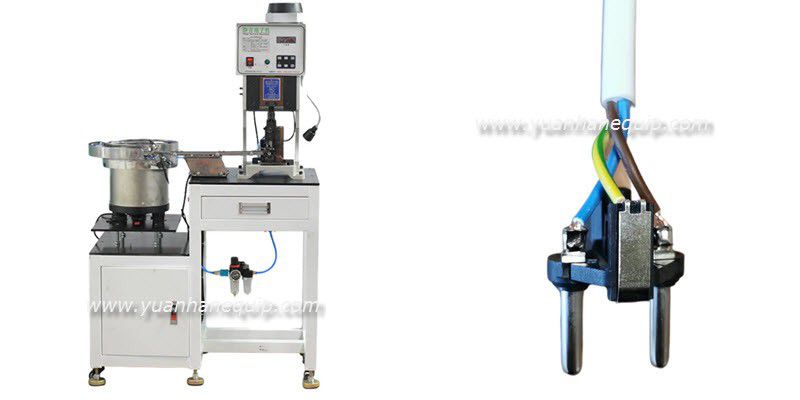

2-Pin France Power Cord Plugs Crimping Machine

Features

  • Based on the silent terminal machine, using cassette molds, easy and convenient to disassemble;

  • Microcomputer chip control, humanized program design, safe and reliable operation;

  • Replace expensive chain terminals and use more economical loose terminals;

  • Centrifugal vibration feeding, frequency conversion speed regulation, precise positioning of cylinder, unified riveting standard;

  • The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages;

  • When necessary, it can be used as a separate silent terminal machine, suitable for 800#, 2000# straight and horizontal applicators.

  • Manual operation part

    Manually put the terminal into the vibration plate

    Manually put the wire into the terminal to be crimped

  • Machine running part

    Automatically arrange and feed the terminals

    Automatically feed the terminal into the designated die(The feeding speed of regular terminals is 60~70 pcs per minute. The speed is 3000-4000 pcs per hour. Note: special terminals are excluded)

    When ready, start the crimp switch, the pressing is completed automatically.

Contact us for details: sales@yuanhanequip.com


Operation video of the France 2-Pin Plugs Crimping Machine


Technical Data

Model YH-ZDP
Dimensions Conventional 500*860*1360 (mm); Special slide rail type: 500*1050*1360 (mm)
Power supply AC 220V/50Hz
Weight about 140KG-170KG
Power consumption Motor: 250W;  LED light: 220V 1W; Vibration plate: 120W
Crimping capacity 20Kn
Stroke of slider 35mm (40mm)
Crimping frequency 120 times/min
Closing height 26mm; Closing height adjustment 10mm


×
