Ultrasonic Nylon Rope Cutting and Sealing Machine ZCUT-160

Views: 359 Author: Site Editor Publish Time: Origin: Site

This fully automatic rope cutting machine is suitable for cutting traction rope, cotton yarn, hemp rope, nylon rope, synthetic fiber rope, etc.

Model: ZCUT-160

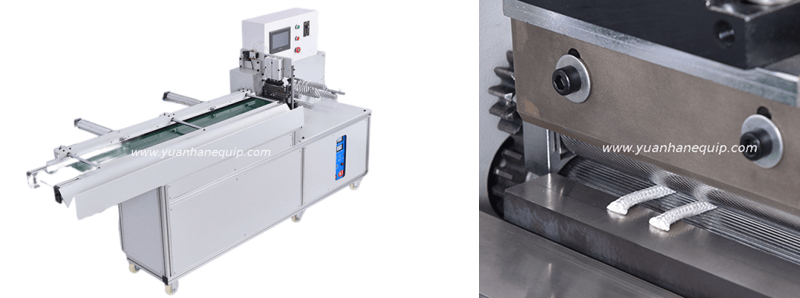

Ultrasonic Nylon Rope Cutting and Sealing Machine ZCUT-160

Features

  • The cutting tools are made of imported Sweden materials, featuring high hardness and long service life

  • The feeding system of the machine is stable and adopts 5-axis linkage structure. This structure minimizes tolerance when multiple pieces are cut at the same time

  • Using German ultrasonic lines with excellent stability, low noise, long-lasting work, low energy consumption

  • Adopts PLC console, automatic feeding, computer counting, high precision, fast speed, simple and fast adjustment, high efficiency, and multiple cuts can be processed at the same time

  • Suitable for cutting traction rope, cotton yarn, hemp rope, nylon rope, synthetic fiber rope, etc.

Contact us: sales@yuanhanequip.com


Operation video of the Plastic Rope Cutting and Sealing Machine


Specifications

Model ZCUT-160
Frequency rate 18KHZ
Voltage 220V
Output power 2.6KW
Dimensions  2000*530*1200MM
Weight 180KG
Efficiency 80-120times/min.


×
