Fully-auto Wire Double-Head Terminal Crimping Machine

Views: 768 Author: Site Editor Publish Time: Origin: Site

This fully automatic double-head terminal crimping machine can process wire cutting, two ends stripping, one end crimping, two ends crimping, and one end twisting. It can be equipped with horizontal and vertical applicators as required.

Model: YH-S01/YH-S02/YH-S03/YH-S04/YH-S05/YH-S06

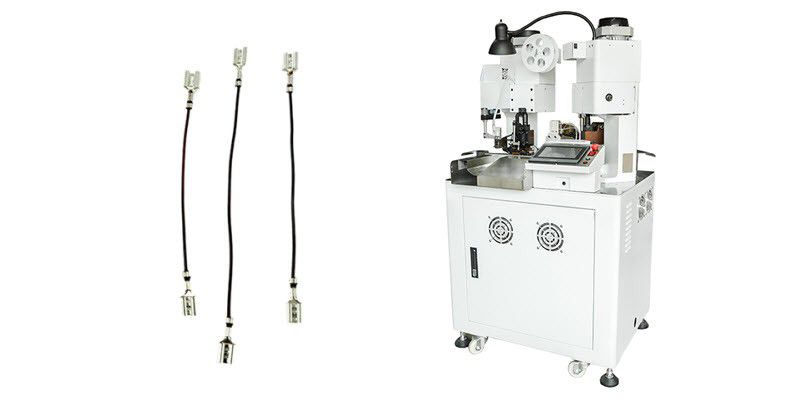

Automatic Double-Head Terminal Crimping Machine

Features

  • A multi-functional and fully automated machine that can process wire cutting, two ends stripping, one end crimping, two ends crimping, and one end twisting

  • Advanced software and visual touch screen makes the machine easy to operate

  • Robust, durable and stable. The raw materials of this machine have been heat treated, blackened and hard oxidized

  • Using two motors to send wires, avoiding the problem of different lengths of wires and indentation of wires

  • Low noise and uniform force, can be equipped with horizontal and vertical applicators

Contact us for details: sales@yuanhanequip.com


Operation video of the fully automatic cable two ends terminal punching machine


Specifications

Model

YH-S01

YH-S02

YH-S03

YH-S04

YH-S05

YH-S06

Type

General model

Two wires model

Thin wire model

Gold pin model

Thick wire model

Parallel wire model

Product Features

wire cutting, two ends stripping, one end crimping, two ends crimping, one end twisting

Machine capacity

3800-6800 pieces / hour

Wire cutting length

45-999mm

Wire stripping length

0-10mm

Suitable wire sizes

AWG18-28#

AWG18-28#

AWG20-32#

AWG18-28#

2.5mm2

AWG18-28#

Tool material

Imported tungsten steel / high-speed net

Pneumatic accessories

Standard AirTAC

Detection device

Crimping detection, lack of wire detection, pressure detection, terminal detection

Air pressure

0.5-0.7MPA

Power supply

AC 220V

Machine size

800(L)*830(W)*1530(H)mm(Not including packing)

Weight

About 320KG


×
