Servo Motor Driven Wire Lugs Crimping machine

Views: 597 Author: Site Editor Publish Time: Origin: Site

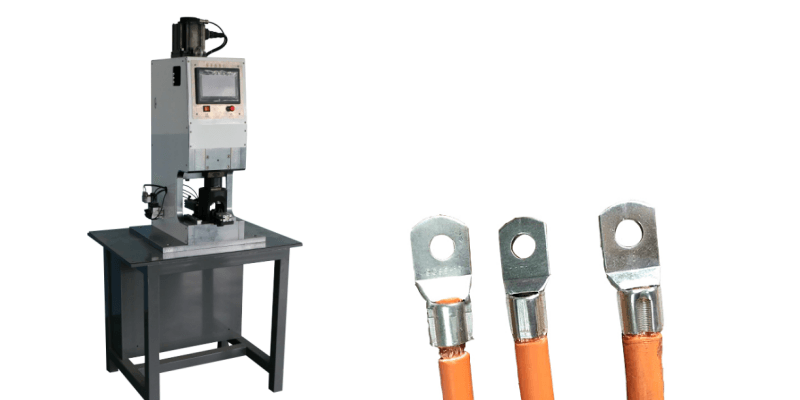

This servo motor driven terminal crimping machine is mainly used for crimping of large square tubular terminals. The applicable wire sizes range from 10-120 square mm.

Model: YH-SF30T

Servo Motor Terminal Crimping Machine

Features

  • This machine is mainly used for crimping of large square tubular terminals;

  • Based on industrial-grade control chip with high-precision servo drive, the machine can run stably;

  • Touch screen operation mode, PLC control system, instantaneously change the crimping range of different terminals;

  • 10-120mm2 closed tubular terminal crimping without changing the tool, instantly change the size of the knife edge;

  • Suitable for crimping of non-standardized terminals or crimped terminals;

  • No need to change the mold, high accuracy;

  • The crimping joint can be fully opened, suitable for intermediate or large square terminals;

  • Position adjustment of the actual square of the wire;

  • Compact, space saving, and low noise.

Contact us for details: sales@yuanhanequip.com


Operation video of servo motor cable connector crimping machine


Technical data

Model YH-SF30T
Wire Size 10-120mm²
Pressure 300KN
Stroke 35mm
Crimp width  12.5mm (Customizable)
Weight  120kg
Voltage 220V/50Hz
Power 2300w


×
