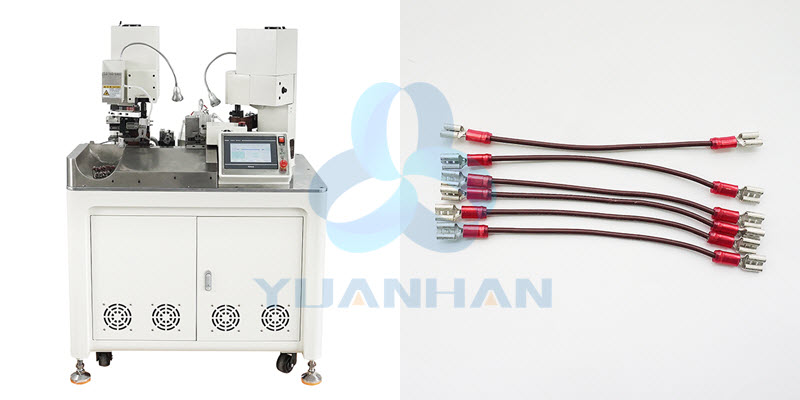

Introducing our top-of-the-line product - the fully automatic double-head terminal crimping machine. Designed to meet the demands of high-volume wire processing, this machine is perfect for cutting cable, stripping two ends, crimping one or both ends, and twisting a single end.
Equipped with both horizontal and vertical applicators, this multipurpose crimping machine saves time and boosts productivity by efficiently processing a wide range of wires. With its fully automated functions, it guarantees consistent and precise crimping every time, while reducing the chances of errors and waste.
Contact us: sales@yuanhanequip.com
Whether for industrial or commercial use, our cable cutting stripping and 2 ends crimping machine is the perfect choice for businesses that require high-quality crimping that meets industry standards. Invest in our fully automatic double-head terminal crimping machine and take a big step towards more efficient and effective wire processing. Trust us to deliver top-notch products that meet your requirements and exceed your expectations.
Operation video of the cable cutting stripping and 2 sides crimping machine
Technical Data
Model | YH-ST02 |
Power supply | AC220V/50/60HZ single phase |
Capacity | 1400 pieces/hour (length<300mm) |
Wire range | AWG14 - AWG28 |
Cutting length | 65mm - 9999mm (special length can be customized) |
Cutting accuracy | 1mm+cutting length*0.2% or less |
Stripping and twisting length | 7mm - 12mm |
Crimping capacity | 2.0 tons (3.0T optional) |
Air pressure | 4 - 6kgf (clean and dry air is required) |
Detection device | optical fiber induction, detection of wire presence, detection of terminal crimping, blockage detection, low air pressure detection |
Dimensions | 700W x 800L x 1500H(mm) |
Weight | about 358kg |
