Fully Automatic Cable Cut Strip and Twist Machine

Views: 364 Author: Site Editor Publish Time: Origin: Site

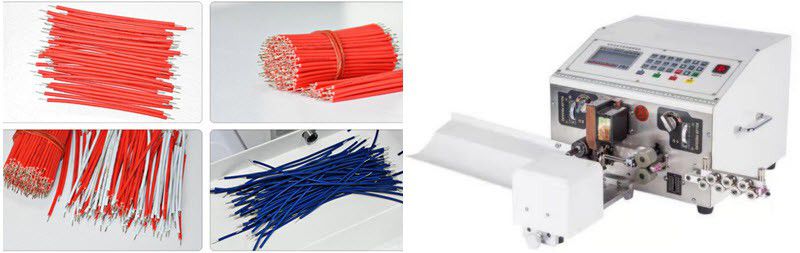

This fully automatic wire cutting stripping and twisting machine can complete wire cutting, half stripping, multi-section partial stripping and wire twisting at one time. It is able to process two cables simultaneously.

Model: YH-8003S

Fully Automatic Cable Cut Strip and Twist Machine

Features

  • This machine is mainly used for processing electronic wire, silicone wire, Teflon wire, isolation wire, coaxial wire, sheathed wire, etc.

  • Wire cutting, half stripping, multi-section partial stripping and wire twisting can be completed at one time.

  • Process two cables simultaneously.

Contact us: sales@yuanhanequip.com


Operation video of Fully Automatic Wire Cut Strip and Twist Machine


Technical Data

Model YH-8003S
Power AC 110V/220V 50/60HZ
Power consumption MIN:20W MAX:220W
Cutting length 0.1-99999.99mm
Stripping length 0.1-30mm
Twisting length 0.1-20mm
Cutting accuracy changing range: 1mm+cutting lengthx0.2%
Applicable wire size AWG22-28AWG
Dimensions 755mmx650mmx305mm
Weight 45KG


×
