Fully Automatic Wire Waterproof Rubber Seals Insertion Terminal Crimping Machine

Views: 320 Author: Site Editor Publish Time: Origin: Site

This fully automatic waterproof seals terminal crimping machine can process wire cutting, peeling at both ends, and wear waterproof seals and crimp terminal at single end. It's easy-to-use CNC touch screen helps you reset wire cutting length, stripping length, rubberized depth and other parameters easily.

Model: YH-FSD01

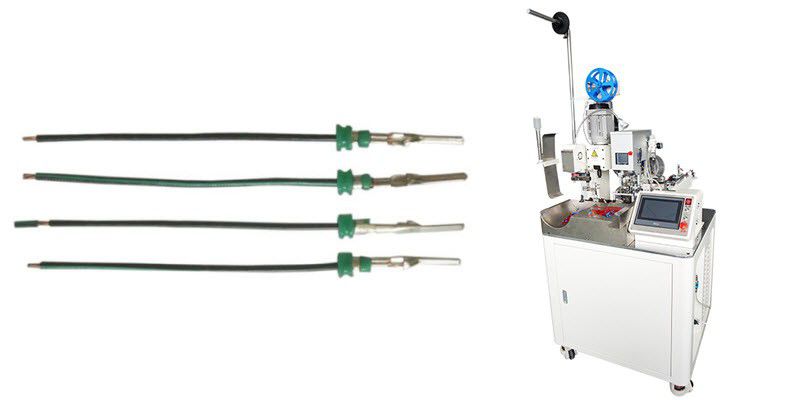

Fully Automatic Wire Waterproof Rubber Seals Insertion Terminal Crimping Machine

Features

  • Wear waterproof plug at one end and crimp terminal at the same time

  • Both OTP horizontal and straight card models can be used and can be quickly exchanged

  • Cut and strip both ends of the wire, and crimp terminal at one end

  • Easy-to-use CNC touch screen helps you reset wire cutting length, stripping length, rubberized depth and other parameters easily

Contact us: sales@yuanhanequip.com


Operation video of the Fully Automatic Wire Waterproof Rubber Seals Insertion Terminal Crimping Machine


Technical Data

Model             YH-FSD01
Dimensions             800L*800W*1862Hmm
Maximum capacity         3,000 strip/h (length =150mm)
Applicable wires AWG1007 18#-28# (applicable part  awg1007#32)
Cutting length 65mm-300mm (more than 800mm need to assemble conveyor belt)
Cuttig precision Adjustment range 0.5mm+ Cutting length less than x0.5%
Peeling length             r<10mml<14mm (need to be customized for extra long skinning)
Pressure ability             Standard 2ton
Power             1.0KW
Power supply             ac220v 50HZ Single Phase
Compressed air             0.5-0.55mpa (5KGF/CM)
Weight             350kg
Control mode             Micro control, 165na/mips mode, 5US standby wake-up, high speed operation
Optional accessories

1. Cassette mould and blade

2. Vertical wire feeder,

3. Axial discharge device

4. Conveyor belt

5. Pressure Transducer System


×
