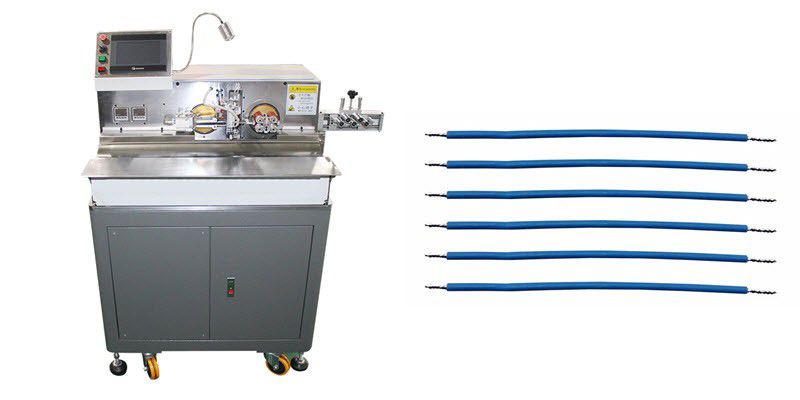

Fully Automatic Multi-Wire Cutting Stripping Twisting and Tinning Machine

Views: 136 Author: Site Editor Publish Time: Origin: Site

This cable cutting stripping twisting and tinning machine is suitable for process single wire cutting, single end stripping, twisting and tinning, double ends stripping, twisting and tinning. Wire range: AWG#14-AWG#34 (other size can be customized).

Model: YH-SD01

2019-08-27_15-37-23

Features

  • Function: single wire cutting, single end stripping, twisting and tinning, double ends stripping, twisting and tinning

  • Wire range: AWG#14-AWG#34 (other size can be customized)

  • The front part of the machine is equipped with two sets of wire feeders. When the machine process ten wires at the same time, the machine can control the length of the wire more stably

  • The rear part adopts the cylinder brake mechanism for the back stripping

  • PLC control system, simple operation, accurate positioning, high precision and long service life


Operation video of Multi-Wire Cutting Stripping Twisting and Tinning Machine


Specifications

Model
YH-SZ01
Wire range AWG#14-AWG#34(other size can be customized)
Capacity 20,000-25,000 (depending on wires, up to 12 at the same time)
Cutting length 8mm-99,999mm
Cutting accuracy
0.003*L (L is the wire cutting length)
Stripping length 0.1mm-10mm (other sizes can be customized)
Twisting length 0.1-10mm (other sizes can be customized)
Compressed air 0.5Mpa-0.7Mpa
Tool material imported tungsten steel / high speed steel
Power supply AC220V ≤ 50-60HZ (single-phase)
Dimensions 1120(L)*720(W)*1200(H)mm
Weight
about 350KG


×
