Wire Harness Shrinkable Tubing Heating Oven

Views: 141 Author: Site Editor Publish Time: Origin: Site

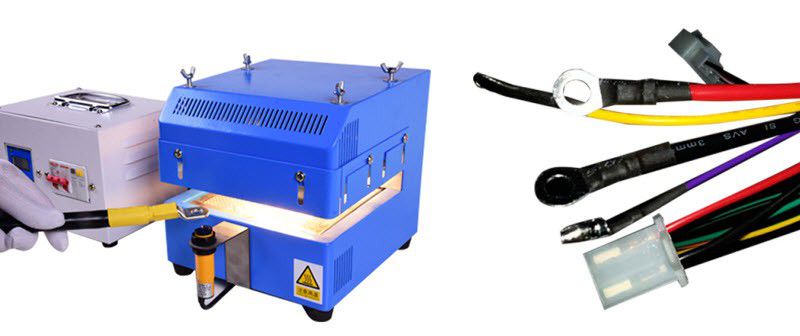

This shrink tubing oven is suitable for heating heat-shrinkable tube of wire harness processing enterprise. Working time and heating zone width can be adjusted according to production requirements. This infrared heating machine can work continuously for 24 hours without interruption.

Model: YH-1010Z

Wire Harness Shrinkable Tubing Heating Oven YH-1010Z

Features

  • The infrared heating machine is suitable for heating heat-shrinkable tube of wire harness processing enterprise.

  • The heating time and the stopping time can be freely adjusted according to actual needs. One can start the heating using manual triggering or use the automatic cycle heating start/stop mode.

  • The split design of the machine can be used separately from the heating system, or it can be configured on a large heating device as needed, but the heating power need to be less than or equal to the rated output power of the controller.


Contact us for details: sales@yuanhanequip.com


Operation video of Wire Harness Shrinkable Tubing Heating Oven


Specifications

Model YH-1010Z
Size
MachineL×W×H 190×258×180mm
Control power supplyL×W×H 194×194×140mm
Heating zoneL×W×H 170×150×40mm
Maximum harness heating length 160mm
Maximum harness heating diameter 40mm
Heating pipe Heating pipe name Infrared radiant tube
Heating tube power 1600W
Power
Power demand 220V
Total power 1700W
Safety
Security level Grounding wire
