Kunshan Yuanhan Electronic Equipment Co., Ltd.

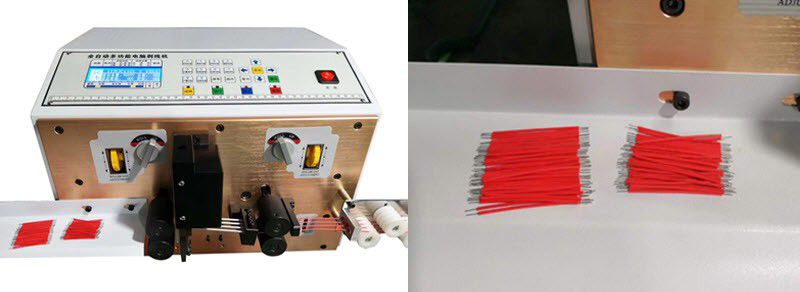

Fully Automatic Multiple Cables Cutting and Stripping Machine

Views: 267 Author: Site Editor Publish Time: Origin: Site

This fully automatic wire cutting and stripping machine is able to process 4 wires simultaneously, thus its working efficiency is 4 times than ordinary models.

Model: YH-BSX

Fully Automatic Multiple Cables Cutting and Stripping Machine

Contact us for details: sales@yuanhanequip.com


Features

  • Main features: fully automatic wire cutting, full stripping and half stripping

  • The machine is able to process 4 wires simultaneously, thus its working efficiency is 4 times than ordinary models.

  • Applicable wires: electronic wires, silicone wires, Teflon wires, isolation wires, fiberglass wires, etc.


Operation video of the multiple cables cutting and stripping machine


Specifications

Model YH-BSX
Power supply AC220V, 50Hz/60Hz (Special voltage can be customized)
Operation mode button+192*64 dot matrix screen
Applicable wires 0.1-2.5mm2
Cutting length 0.1-99999.9mm
Stripping length Head: 0-30mm; Tail0-30mm
Cutting tolerance ±(0.2+0.033*L)mm (L=length)
Maximum diameter of the conduit ⌀ 4mm
Blade material tungsten high speed steel
Drive mode 4 wheels drive
Working speed 15,000pcs/h
Dimensions 458*570*329mm
Weight 42KG


×
