Fully Automatic Wire Rubber Seals-crimping Machine

Views: 627 Author: Site Editor Publish Time: Origin: Site

This fully automatic wire rubber seals-crimping machine can process single-end wire stripping, single-end terminal crimping and single-end rubber seal insertion at the same time.

Model: YH-C331-FS

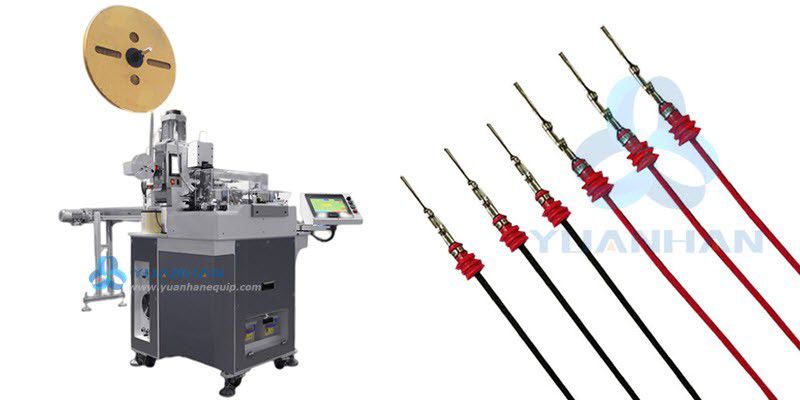

Fully Automatic Wire Rubber Seals-crimping Machine

Features

  • Function: wire single head stripping, crimping and rubber seals plugging-in.

  • The Mitsubishi control system makes cable peeling, terminal crimping, and rubber seals inserting very precise.

  • Touch screen operation, simple and convenient, can set stripping and cutting length, cutting depth, and crimping position.

  • The automatic detection function of the machine can effectively control the occurrence of defective products, so that they can be found and dealt with in time.

Contact us: sales@yuanhanequip.com


Operation video of the Fully Automatic Wire Rubber Seals-crimping Machine


Technical Data

Model YH-C331-FS
Applicable wire diameter 0.2-2.5mm2
Cutting length 0-15mm
Crimping force 2.5T
Crimping method servo motor crimping
Display language Chinese/English
Power supply/Air pressure AC220V±10%(50/60Hz)/0.5Mpa 150(ANR)/min
Dimensions 1,200mm*1,100mm*2,300mm(L*W*H)
Weight 525kg
Applicable wire type AV、 AVS、AVSS、CAVUS、KV、KIV、UL


×
