Desktop Mounted Cable Tie Tying Gun YH-GD250

Views: 441 Author: Site Editor Publish Time: Origin: Site

This automatic cable tie tool is suitable for goods fixing and packing, joints fixing for gas and liquid pipes, bag sealing for food and liquid materials. It is also suitable for tightening wire harness with sleeves.

Model: YH-GD250

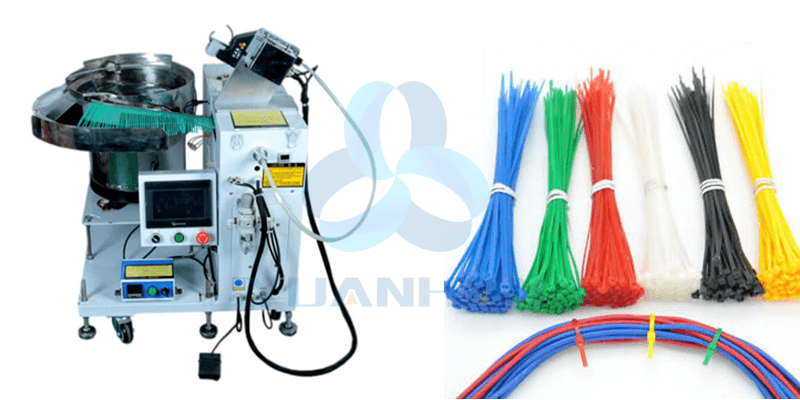

Desktop Mounted Cable Tie Tying Gun

Features

  • Use bulk cable ties, vibration feeding, transferred to the gun via hose.

  • Foot pedal or photoelectric induction excitation, automatically complete all actions such as feeding, banding, tightening, cutting, and discarding waste.

  • Can be fixed onto table or production line.

  • Binding force is adjustable by turning the knob.

Contact us: sales@yuanhanequip.com


Operation video of the Desktop Mounted Cable Tie Tying Gun


Technical Data

Model YH-GD250 YH-GD251
Cable tie specs 2.5x80mm 2.5x100mm
Min. banding Dia.  φ2.0mm φ2.0mm
Max. banding Dia. for wire φ14mm φ17mm
Max. banding Dia. for tube φ13mm φ16mm
Operation speed 0.7s 0.7s
Dimension L690*W670*H670mm L690*W670*H670mm
Weight 140kg 140kg
Gun size 245*95*64mm 250*102*64mm
Gun weight 0.84kg 0.85kg
Host power AC 220V 50/60Hz AC 220V 50/60Hz
Gun power DC 48V DC 48V
Power 1000w 1000w
Pneumatic pressure 5 KG/cm2 5 KG/cm2


×
