Heavy Duty Cable Reel Stands Machine YH-1250

Views: 541 Author: Site Editor Publish Time: Origin: Site

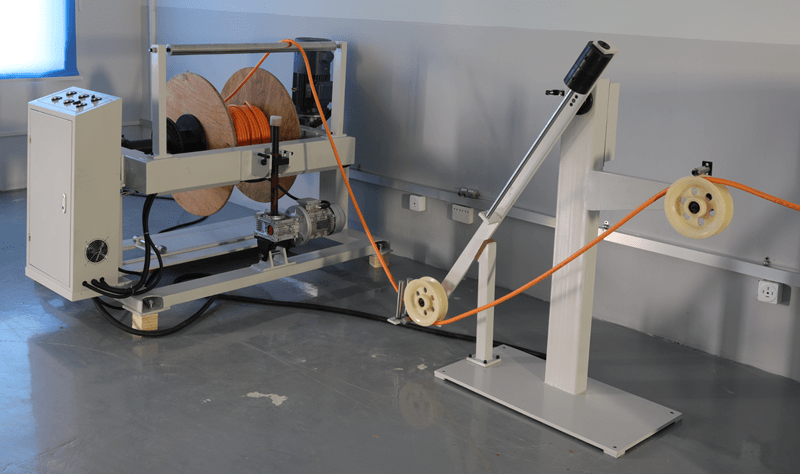

This large cable prefeeder machine is suitable for automatic pay-off of large cables such as new energy cables prefeeder, charging pile cables, power cables, photovoltaic cables, and BV cables.

Heavy Duty Large Cable Feeder System YH-1200

Features

  • Application: Automatic pay-off of large cables such as new energy vehicle cables, charging pile cables, power cables, photovoltaic cables, and BV cables.

  • Pay-off method: shaftless power pay-off, frequency converter automatically controls the pay-off speed, automatic wire feeding, automatic shutdown.

  • Pay-off tension: mechanical swing bar structure, move the counterweight to adjust the pay-off tension.

Contact us: sales@yuanhanequip.com


Operation video of the heavy duty cable reel stands machine YH-1250


Technical Data

Model YH-1200
Suitable wire diameter φ3-45
Applicable spool outer diameter: φ600-1250mm, width: 550-950mm
Maximum load 1.5T
Maximum pay-off speed 100m/min
Host power 5.5kw
Total weight about 700kgf
Power supply three-phase four-wire system AC380V, 50/60Hz


×
