Machine insert plastic housing, Automatic inserting housing machine

Views: 255 Author: Site Editor Publish Time: Origin: Site

This fully automatic cable housing inserting machine is able to process wire cutting, two ends stripping, crimping, tinning and housing inserting. Cutting length: 85-700mm; Stripping length: 0.5-10mm. Applicable wire sizes: 0.8-2.0mm (28#-20#).

Model: YH-07D

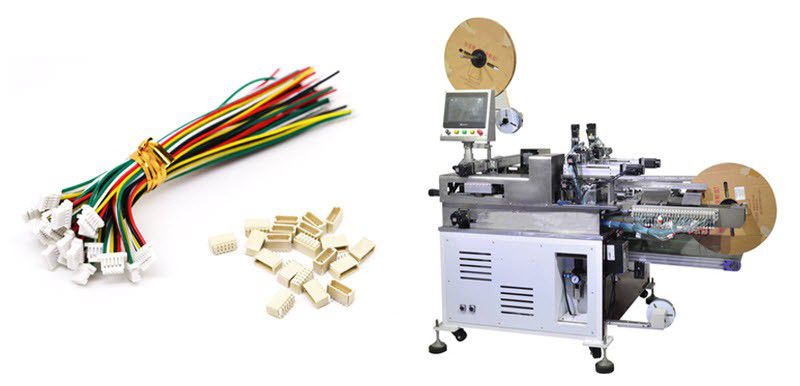

Automatic inserting housing machine

Features

  • Wire cutting, two ends peeling, crimping, tinning and housing inserting

  • Cutting length: 85-700mm; Stripping length: 0.5-10mm

  • Applicable wire sizes: 0.8-2.0mm (28#-20#)

  • Equipped with detection device

Contact us for details: sales@yuanhanequip.com


Operation video of the automatic inserting housing machine


Specifications

Model YH-07D
Function Cutting/stripping/pressing/tinning/twisting/housing inserting
Productivity 3800pcs/H
Wire Size outside diameter: 0.8-2.0mm (28#-20#)
Cutting Length 85-700mm
Stripping Length 0.5-10mm
Pressure 2T
Power Supply AC220V 50/60Hz
Air Pressure 0.5-0.7Mpa
Dimension 1500L*1200W*1650H

Detector

1.Air pressure alarm

2.Defective product recognition

3.Terminal exist or not

4. Visual computer equipment


×
