Machine to apply braided sleeving on wire harness

Views: 55 Author: Site Editor Publish Time: Origin: Site

This is a semi-automatic machine to apply braided sleeving on wire harness. It is suitable for threading woven sleevings onto wire harness and cables.

Model: YH-BZ1

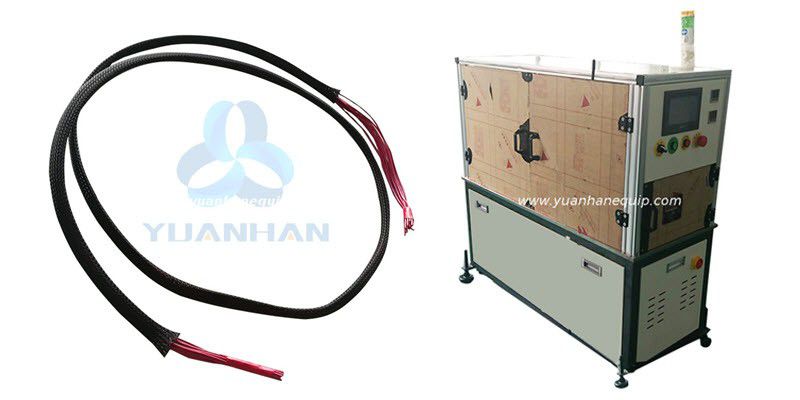

Machine to apply braided sleeving on wire harness


  • This automatic braided sleeving wrap-around machine fuses the woven sleeving according to the set length and send it to the side of the hollow guiding tube for threading.

  • Fast speed, good threading effect, simple operation and precise cutting

  • Suitable for wrapping-around different types of braided sleevings onto wire harness and cables

  • It consists of a fine-tunable photoelectric control system and a PLC control system. The cutting length can be set, and the cutting performance is stable.

  • Applicable products: automotive wiring harness, electronic wire, medical wire, metal, wire and cable, etc.

  • Applicable industries: wire harness processing plant, electronics factory, electrical appliances, hardware, etc.

Contact us: sales@yuanhanequip.com

Operation video of the machine to apply braided sleeving on wire harness

Technical Data

Model YH-BZ1
Applicable sleeving fiber sleeving (woven mesh sleeving), melt cut materials
Applicable wire range custom type (the wire diameter does not exceed the pipe diameter)
Applicable guide tube range diameter 12-25mm
Cutting accuracy ±3MM
Cutting length


Speed no less than 1000PCS/hour (depending on sleeving size and manual operation speed)
Power single phase AC 220V/50HZ
Energy consumption 400W/Hr
Operating ambient temperature -5 ° C ~ +40 ° C
Relative humidity (40 ~ 90)% RH
Access gas source 0.4~0.6MPA
Weight about 80KG
Dimension 500W*1230L*1115H(mm) (subject to actual production)

Special materials can be customized.
