Rubber Washer Cutting Machine | EPDM Rubber Gasket Cutting Machine

Views: 789 Author: Site Editor Publish Time: Origin: Site

This fully automatic rubber washer cutting machine is designed for cutting non-adhesive strip materials like EPDM rubber gasket, belt loop, string, plastic zipper, elastic band, small webbing. More than that, it can also cut different kinds of tubes like heat shrink tubes, fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes and much more.

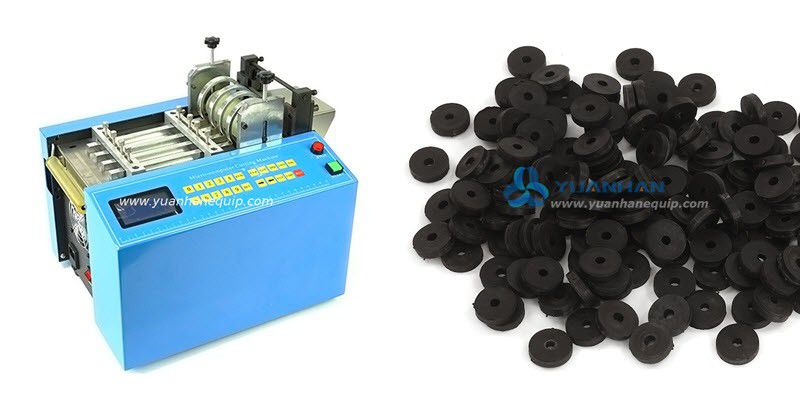

Rubber Washer Cutting Machine

Features

  • High efficiency and high accuracy: up to 150 times per minute;

  • Tolerance: +/- 0.5% of cutting length;

  • Cutting type: Cold cutting with a durable cold knife;

  • Suitable for cutting fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, electric cables, and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

  • Automatic operation: It works automatically only by setting length and quantity;

  • Automatic stopper: It stops automatically if materials run out during operation;

  • Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

  • We supply different models to fit your requests.

Contact us: sales@yuanhanequip.com


Operation video of the Rubber Washer Cutting Machine


Technical Data

Model ZCUT-100S ZCUT-120S ZCUT-160S ZCUT-200S ZCUT-300S
Cutting length (mm)  1mm-99999mm  1mm-99999mm  1mm-99999mm  1mm-99999mm  1mm-99999mm
Cutting accuracy (mm) 0.1mm 0.1mm 0.1mm 0.1mm 0.1mm
Max cutting width (mm) 1-100mm  1-120mm  1-160mm  1-200mm  1-300mm
Cutting speed(p/min)  150 150 150 150 150
Knife max temperature (C) cold knife  cold knife  cold knife  cold knife  cold knife
Voltage/ frequency(V/Hz) 110V/220V50/60 110V/220V50/60 110V/220V50/60 110V/220V50/60 110V/220V50/60
Rating Power(W)  500W 750W 1100W 1300W 1500W

Size(mm)

(LxWxH)

430×300×480 430×330×480 (430×380×480 430×400×480 430×510×480
Weight(NW) 30kg 32kg 34kg 36kg 40kg


×
