Kunshan Yuanhan Electronic Equipment Co., Ltd.

Membrane Switch Flexible Circuit Crimping Machine

Views: 321 Author: Site Editor Publish Time: Origin: Site

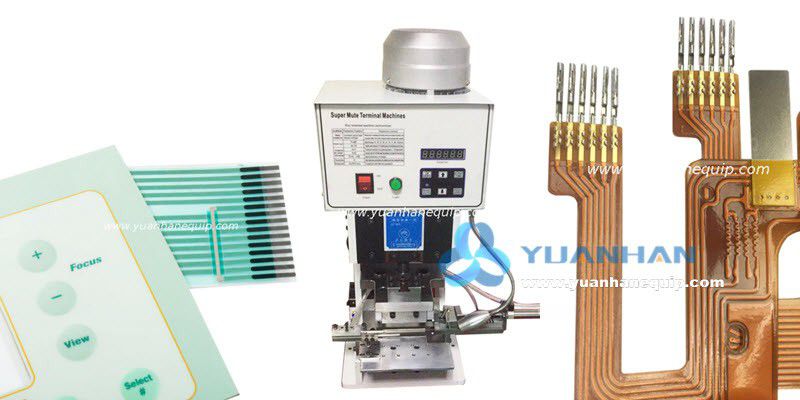

This is a semi-automatic membrane switch flexible circuit crimping machine, which is capable of crimping connectors onto membrane switch flexible tails and flexible circuits.

Model: YH-MS01

Membrane Switch Flexible Circuit Crimping Machine

Contact us: sales@yuanhanequip.com


Operation video of the membrane switch flexible circuit crimping machine


Technical Data

Model YH-MS01
Application Membrane Switch Crimping
Nominal pressure 36.5KG
Average power consumption 450W
Motor Power 550W
Stroke 30mm(40mm is customizable)
Power Supply 220V/50Hz,110V/60Hz
Net Weight  38KG
Dimension 220*212*600mm


×
