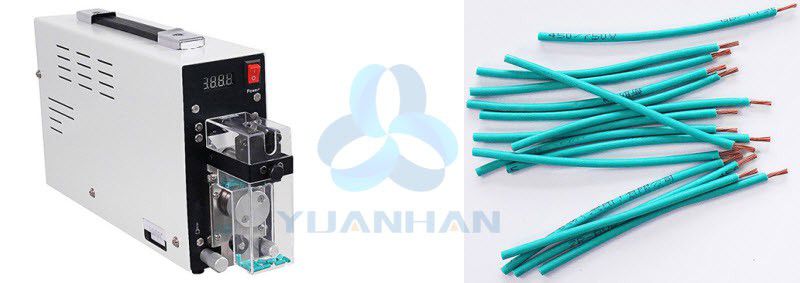

Portable Stranded Wire Stripping Machine

Views: 13 Author: Site Editor Publish Time: Origin: Site

The YH-2015D electric wire stripper can process discrete wires, solid wires, single-stranded wires, single-core cables, multi-core cables, rubber wires and PUR PVC Teflon wires.

Model: YH-2015D

Portable Stranded Wire Stripping Machine

Features

  • Suitable for stripping discrete wires and small multi-conductor cables

  • Extremely short cycle times

  • No need to change blade

  • Being able to strip very short cables

Contact us: sales@yuanhanequip.com


Operation video of the Portable Stranded Wire Stripping Machine


Technical Data

Model YH-2015D
Available wire size 0.03- 6mm² (32- 8 AWG)
Max. cable OD 4.0mm (0.12")
Full strip 1mm (0.019")
Partial strip 2mm (0.078")
Setting accuracy 0.01mm (0.001")
Max. stripping length 18mm
Processing time 0.3s
Air pressure 0.5Pa-0.8Pa
Net weight 3kg (6.6 lbs.)
Dimension (Length * Width * Height)  265 x 70 x 135 mm (10.4 "x 2.8" x 5.3 ")


×
