Multi-core Cables Cutting and Stripping Machine, Multi-conductor Wire Insulation Removing Machine

Views: 598 Author: Site Editor Publish Time: 2021-08-09 Origin: Site

This multi-core cables cutting and stripping machine is suitable for processing of multi-conductor round cables and wires. Wire cutting, cable outer sheath stripping and inner core insulation stripping can be finished at one time.

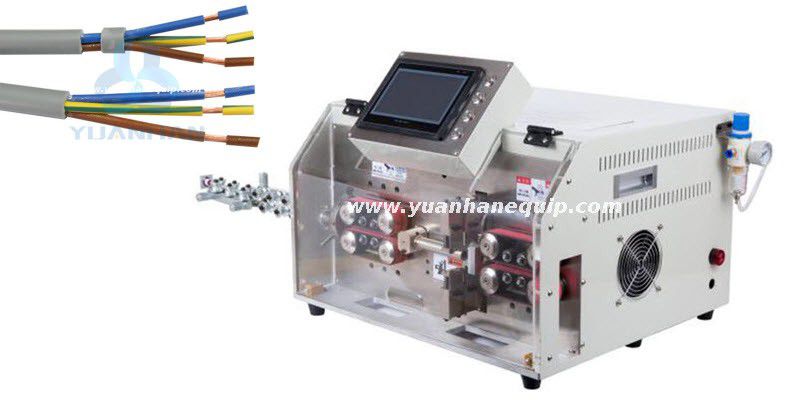

Multi-core Cables Cutting and Stripping Machine

Features

Suitable for processing of multi-core round cables
Wire cutting, cable outer sheath stripping and inner core insulation stripping can be finished at one time
Cable cutting and stripping are finished by two sets of moveable cutters
Up to 100 program numbers can be stored to recall various processing data at any time

Operation video of the multi-core cables cutting and stripping machine

Technical Data

Model	YH-HT3
Outer stripping	20-150mm
Inner core wire stripping	Head 3-10mm, tail 3-30mm
Stripping range	3-13mm (≤ 4 cores)
Cutting length	Max. 400m
Maximum diameter of catheter	φ15mm
Blade	4pcs imported high speed steel
Productivity	650pcs/hour(L=200mm)
Display	Chinese and English switch(7” touch screen)
Conduict diameter	11mm
Cutting tolerance	±0.2mm

Get a free quote for your project. Click here.
