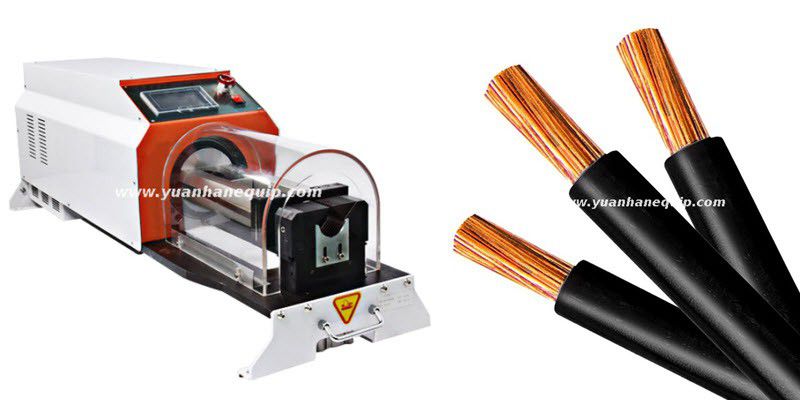

Rotary Blade Large Cable Stripping Machine

Views: 964 Author: Site Editor Publish Time: 2021-08-06 Origin: Site

This Rotary Blade Large Cable Stripping Machine is mainly used for stripping large cables. It is a special machine for processing of new energy DC cables. Maximum wire diameter is 50 mm, and max stripping length is 100 mm.

Model: YH-300

Features

This machine is mainly used for stripping large cables, such as new energy DC cables
High precision rotating and strong peeling
Maximum wire diameter is 50 mm, and max stripping length is 100mm
Adopt double blades, change without correction, automatically find the machining center, which greatly increases the productivity

Operation video of the Rotary Blade Large Cable Stripping Machine

Technical Data

Model	YH-300
Control system	Dedicated controller
Stripping method	Rotary peeling
Stroke	0-300mm
Voltage	220V 50-60HZ
Air pressure	0.5-0.7Mp
Power	200W
Stripping diameter	ø10-ø50mm
Stripping tolerance	±0.2
Speed	20-40pcs/min
Size	1000x450x350mm
Weight	80KG
