Multi-core flat cable cutting and stripping machine

Views: 500 Author: Site Editor Publish Time: Origin: Site

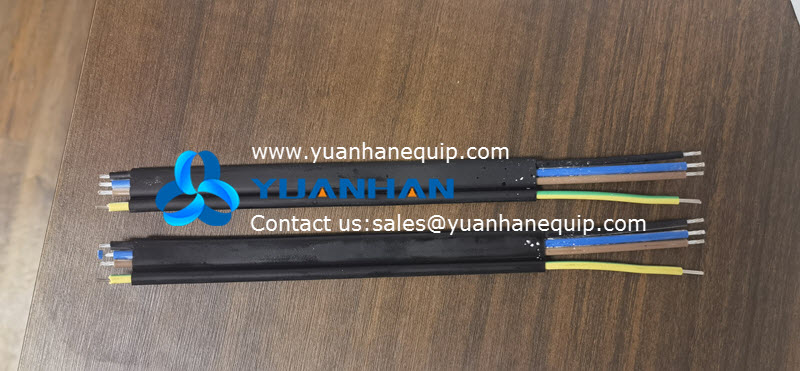

This is a fully automatic cable cutting and stripping machine for multi-conductor flat cables and round cables. The outer sheath and inner conductor can be stripped at the same time. The applicable wire size range is 0.75-30 mm².
Model: YH-603H
Multi-core flat cable cutting and stripping machine
Features

○ Function: cable cutting, outer jacket and inner conductor stripping
○ Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm;
○ User-friendly system with intuitive operation via 7” color touchscreen;
○ Modular interface, easy to link accessories and peripheral equipment;
○ Modular design, can be upgraded in the future;
○ Various accessory options to customize the system. Special cable processing, non-standard customization.
Contact us: sales@yuanhanequip.com

Operation video of the multi-core flat cable cutting and stripping machine


Tech Data

Model YH-603H
Display 7-inch man-machine interface
Function cable cutting, outer jacket and inner conductor stripping
Wire type single core wire, multi-core cable, sheathed cable, PVC cable, etc.
Processing range 0.75 - 30 mm2 (≤ 10 cores)
Cutting length 1mm-999999.99mm
Cutting tolerance within 0.002*L (L=cutting length)
Stripping length

head stripping: outer jacket: 10-200mm, core wire:1-50mm
Tail stripping: outer jacket: 10-80mm, core wire:1-50mm

Max. diameter of wire guiding pipe Φ18
Tool material high speed steel
Productivity 3500 PCS/hour, (sheathed wire 900pcs/H) according to the length and size of the wire
Drive mode 16-wheel drive (feeding stepper motor, tool post servo motor); servo motor feeding optional
Wire feeding method belt feeding, no embossing and no scratches on the cable
Lifting operation mode digital adjustment of the height of the pinch roller
Power supply AC220V 50/60Hz; 110V 50/60Hz optional
Air source 0.5Mpa clean air source
Dimensions 68*48*55cm (L*W*H)
Weight 95kg



×
