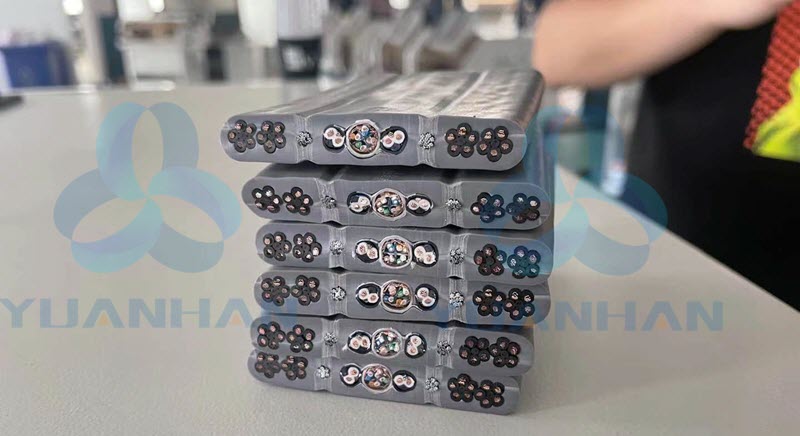

Flat elevator cable cutting machine

Views: 644 Author: Site Editor Publish Time: Origin: Site

We have developed and manufactured cutting machines for flat elevator cables as well as other plastic tubes and sleeves. It cuts the materials to accurate length and also that too at a very high speed... The machine uses special guides for different types and sizes of sleeves/tubes. This ensures a good cut. All other setting is completely digital.
Model: YH-BW09

Flat elevator cable cutting machine YH-BW09
Features
○ MICROPROCESSOR controlled machines with smart display.
○ Fully automatic machine. Setting is completely digitized and mostly automatic.
○ Cutting system: pneumatic cylinder
○ If necessary, customers are requested to submit the sample of sleeves / tubes. This helps in selection of the cutter.

Contact us: sales@yuanhanequip.com
Operation video of the flat elevator cable cutting machine


Technical Data

Model YH-BW09
Control system PLC man-machine interface
Cutting method cylinder
Cutter stroke 50mm
Power 220V 50-60HZ
Air pressure 0.5-0.7Mp
Working rate 200W
Cutting diameter ø1-ø30mm
Cutting width up to 80mm (customizable)
Speed 20-60 pcs/minute (depending on the cutting length)
Dimensions 570x490x460mm
Weight 70kg
×
