New Energy Cable Cutting and Stripping Machine

Views: 740 Author: Site Editor Publish Time: Origin: Site

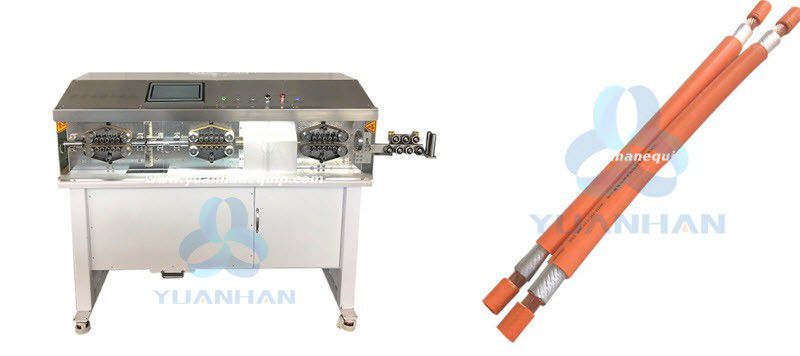

This large gauge cable cutting and stripping machine is mainly used for processing of high-energy power lines for new energy motors, charging stations, electronic control and BMC. It can easily process thick cables up to 120 Sq mm.
Model: YH-8120X

New Energy Cable Cutting and Stripping Machine

Features

○ This machine is a new type of cable processing equipment controlled by microcomputer. It is mainly used for the processing of high-energy power lines for new energy motors, charging stations, electronic control and BMC. The introduction of this model completely solves the processing problem of large square wire and multi-core sheathed cable
○ Automatically cut and strip the insulation at both ends, and at the same time carry out multi-layer stripping processing
○ Industrial-grade control chip with high-precision servo drive enables the machine to run stably at high speed
○ PLC control system, touch screen operation mode
○ Automatic adjustment of wire diameter, no need to change tools for different specifications of cable
○ Belt drive, no indentation
○ Easy to process cables up to 120 mm2, and strong power is the guarantee of work efficiency
Contact us: sales@yuanhanequip.com

Operation video of the New Energy Cable Cutting and Stripping Machine

Technical Data

Model YH -8120X (rotary knife)
Display method 10-inch true color touch screen
Wire type PVC cables, sheathed wires, etc.
Stripping range 10-120mm2
Cutting length 150mm-99999.99mm
Cutting tolerance Within 0.002*L (mm) (L=cutting length)
Stripping length

Front stripping: 1-120mm (customizable to peel more than 1000mm)
Tail stripping: 1- 270mm

Maximum diameter of the catheter Φ7~30mm
Tool material High quality imported high speed steel
Productivity 100-700pcs/h (depending on the length and size of the wire)
Power supply 220V 50HZ
Power 4KW
Drive mode 48-wheel drive, full servo motor
Wire feeding method Belt feeding line, no embossing on the cable without scratches
Remarks Sample wire test is required





×
