Pneumatic High Accuracy Cable Wire Stripper

Views: 387 Author: Site Editor Publish Time: Origin: Site

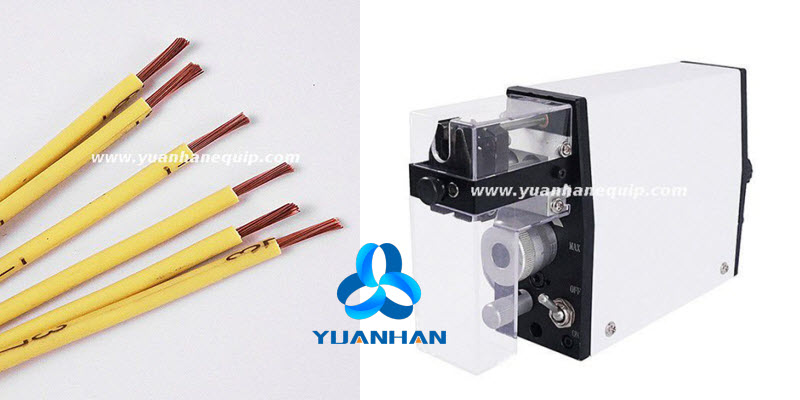

Yuanhan's YH-2015C pneumatic high accuracy cable wire strippers are designed for processing wires and cables with cross-sections from 0.03 – 2.08 mm² (32 – 14 AWG). The flexibility and versatility of these machines make it possible to process even your most difficult applications with ease.
Model: YH-2015C
High Accuracy Cable Core Wire Stripper

Features

  • Suitable for stripping discrete wires and small multi-conductor cables

  • Extremely short cycle times

  • No need to change blade

  • Being able to strip very short cables

  • Easy-to-operate, robust and reliable
    Contact us: sales@yuanhanequip.com

Operation video of the Pneumatic High Accuracy Cable Wire Stripper



Technical Data

Model YH-2015C
Wire size range 0.03 – 2.08 mm² (32 – 14 AWG)
Max. outer cable diameter 3.2 mm (0.12“)
Stripping length 1-20 mm
Precision of diameter setting 0.01 mm (0.001“)
Cycle time approx. 0.3s
Dimensions (L x W x H) 265*70 *135 mm (10.4“ * 2.8“ * 5.3“)
Weight Net: 2.0 kg (4.4 lbs.)
Gross: 3.0 kg (7.7 lbs.)
×
