Semi-Automatic Crimping Machine for Three Pin Power Plug with Insert

Views: 705 Author: Site Editor Publish Time: Origin: Site

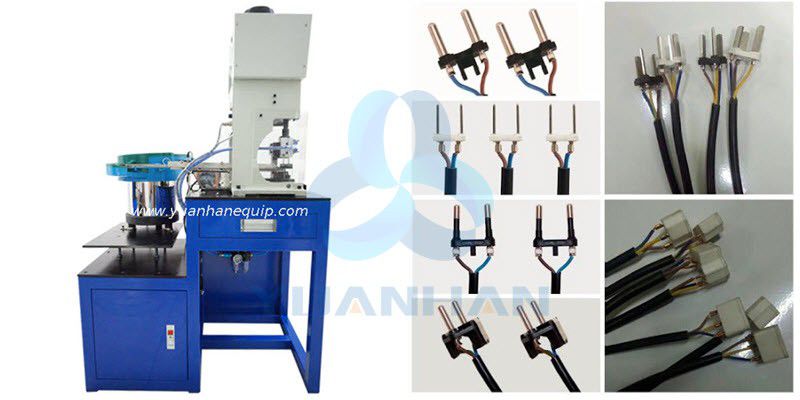

This is a semi-automatic cable connector crimping machine. It is suitable for crimping 3-pin and 2-pin power plug inserts and other loose piece terminals with vibration plate feeding. The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.

Model: YH-ZDP

Semi-Automatic Crimping Machine for Three Pin Power Plug with Insert

Features

  • Based on the silent terminal machine, using cassette molds, easy and convenient to disassemble;

  • Microcomputer chip control, humanized program design, safe and reliable operation;

  • Replace expensive chain terminals and use more economical loose terminals;

  • Centrifugal vibration feeding, frequency conversion speed regulation, precise positioning of cylinder, unified riveting standard;

  • The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages;

  • When necessary, it can be used as a separate silent terminal machine, suitable for 800#, 2000# straight and horizontal applicators.

  • Manual operation part

    Manually put the terminal into the vibration plate

    Manually put the wire into the terminal to be crimped

  • Machine running part

    Automatically arrange and feed the terminals

    Automatically feed the terminal into the designated die(The feeding speed of regular terminals is 60~70 pcs per minute. The speed is 3000-4000 pcs per hour. Note: special terminals are excluded)

    When ready, start the crimp switch, the pressing is completed automatically.

Contact us: sales@yuanhanequip.com


Operation video of the Semi-Automatic Crimping Machine for Three Pin Power Plug with Insert


Technical Data

Model YH-ZDP
Dimensions Conventional 500*860*1360 (mm); Special slide rail type: 500*1050*1360 (mm)
Power supply AC 220V/50Hz
Weight about 140KG-170KG
Power consumption Motor: 250W;  LED light: 220V 1W; Vibration plate: 120W
Crimping capacity 20Kn
Stroke of slider 35mm (40mm)
Crimping frequency 120 times/min
Closing height 26mm; Closing height adjustment 10mm


×
