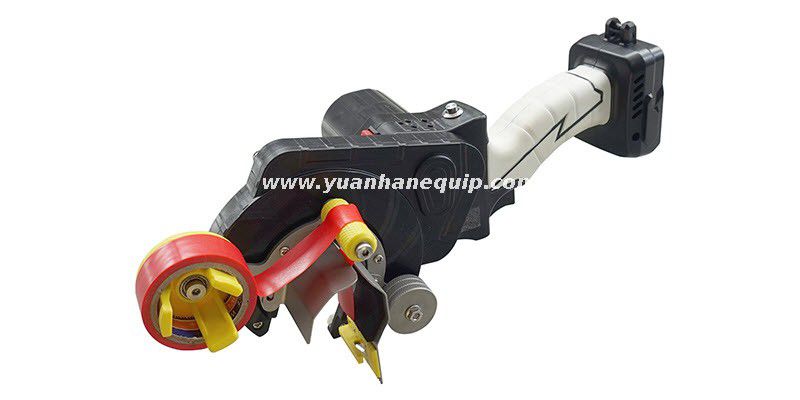

Small Portable Handheld Wire Harness Taping Machine

Views: 670 Author: Site Editor Publish Time: Origin: Site

This small portable handheld tape winding machine for wire and tube is suitable for wrapping tape on wiring harness and tubes, making the whole process stable and reliable.

Model: AT-200

Small Portable Handheld Wire Harness Taping Machine

Features

  • Wrapping tape on wiring harness and tubes, making the whole process stable and reliable

  • Small size, light weight, flexible use, high efficiency

  • Power: lithium battery

  • Switch between handheld operation and desktop operation

Contact us: sales@yuanhanequip.com


Operation Video of the Small Portable Handheld Wire Harness Taping Machine


Technical Data

Model AT-200
Tape width 10-20mm
Taping diameter 8-35mm
Max. Tape OD 90mm
Speed Manually controlled
Power

220/110(V)

Weight 8.5kg
Dimension 43*41*20cm


×
