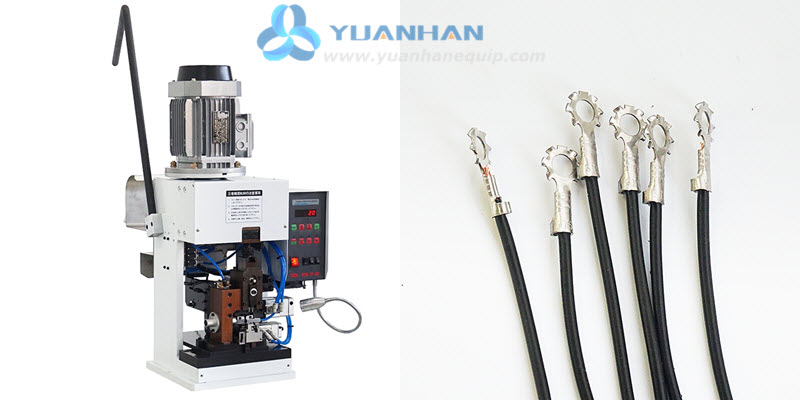

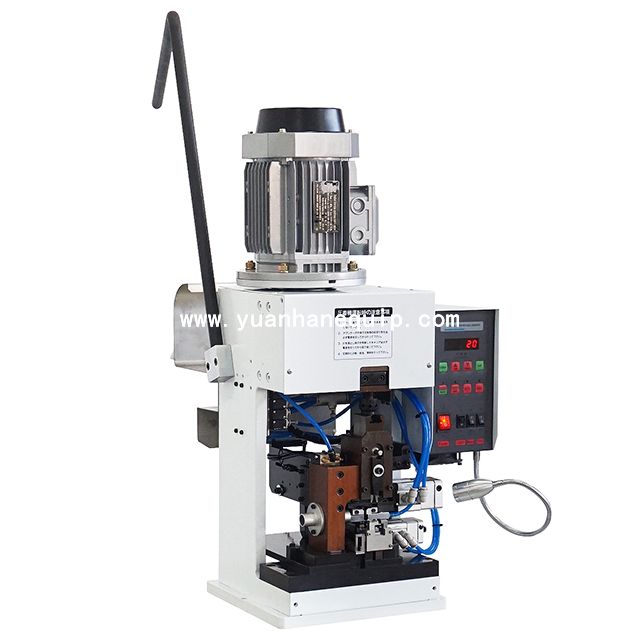

This semi-automatic wire stripping and crimping machine is specially designed for processing straight feeding terminals in roll. It’s good at processing single core wires and multi-core cables. This machine can strip wire and crimp terminals at one time, so there’s no need to strip the wire before crimping.
Model: YH-3000Z
Features
○ Adopts advanced frequency conversion technology to accurately control the variable frequency motor, and equipped with high-precision control module and transmission mechanism, so that stripping and crimping can be completed in one time.
○ Low noise, low power consumption and high speed, having a significant effect on multi-core power cords.
○ The stripping action is driven by the cylinder, the action speed is fast, and the positioning is accurate.
○ The stripped waste is vacuum-absorbed, clean, convenient and simple.
○ The crimping is driven by a turbine and the pressure is highly accurate.
○ The overall speed can be changed through the operation panel to suit the operator's proficiency.
○ The pneumatic parts are all made of Taiwan AirTAC components, which are durable and accurate. They are suitable for all kinds of straight feeding terminals, and the terminals are crimped at the stripping position to achieve uniformity.
Contact us: sales@yuanhanequip.com
Operation video of the stripping and crimping machine
Technical Data
Model | YH-3000Z |
Power supply | 200V~240V 45/60Hz |
Air source | 0.5~0.6mpa(please use dry and clean air) |
Applicable wire diameter | AWG14#~AWG26#(depending on the wire type) |
Applicable wire | AV、AVS、AVSS、CAVUS、KV、KIV、UL、IV Teflon、Fiber Cable, etc. |
Stripping length | 1.0mm~8.0mm |
Cutting tolerance | 0.05mm~0.1mm |
Position tolerance | 0.05mm~0.1mm |
Terminal crimping | open continuous straight feeding terminal |
Crimping force | 3T |
Crimping stroke | 50mm |
Machine size | L450*W500*H1000mm |
Total weight | 120KG |
