Semi-automatic Wire Seals Insertion Machine

Views: 958 Author: Site Editor Publish Time: 2021-09-23 Origin: Site

This is a semi automatic wire waterproof rubber seals insertion machine. It adopts PLC automation software technology to ensure high accuracy and high speed waterproof plug inserting.

Model: YH-200A

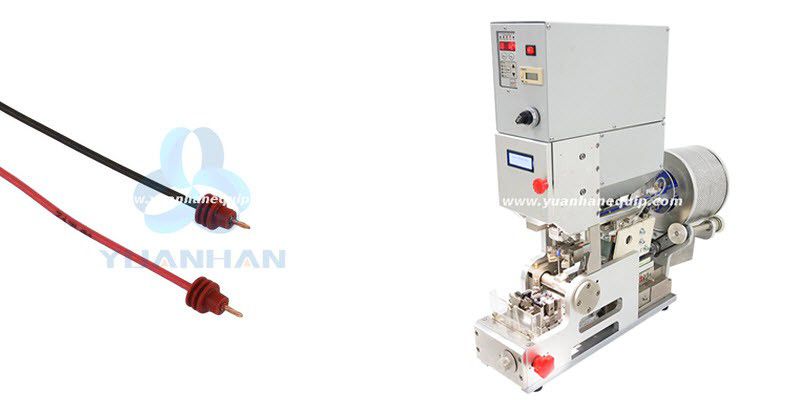

Semi-automatic wire seals insertion machine

Features

This machine adopts PLC automation software technology to ensure high accuracy and high speed waterproof plug inserting.
The fault can be automatically detected and displayed.
It can insert hard shell waterproof plugs and pull off wire sheath.

Operation video of the semi-automatic wire seals insertion machine

Technical Data

Model	YH-200A	YH-200F	YH-200G	YH-300
Power Supply	AC 220/110V, 50/60Hz	AC 220/110V, 50/60Hz	AC 220/110V, 50/60Hz	AC 220/110V, 50/60Hz
Power Rating	80W	80W	80W	80W
Air Supply	0.5~0.7Mpa	0.5~0.7Mpa	0.5~0.7Mpa	0.5~0.7Mpa
Waterproof Clasp size (Diameter*Length) Notice: need to customize feeding rail according to different water-proof plugs	≤φ16*15（Max）	≤φ10*9（Max）	≤φ10*9（Max）	≤φ14*15（Max）
Speed	70pcs/min	70pcs/min	70pcs/min	60pcs/min
Dimension	L600W600H260	L600W200H550	L600W200H400	L600W100H600
Weight	35KG	30KG	30KG	30KG
