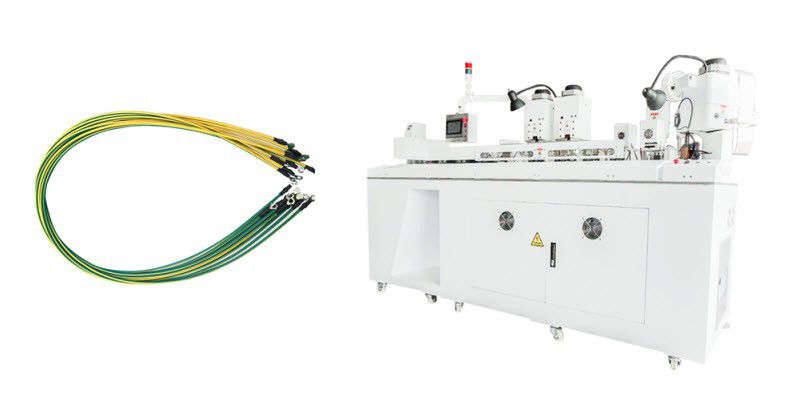

Shrinkable Tubing Inserting and Terminal Crimping Machine

Views: 351 Author: Site Editor Publish Time: 2019-08-21 Origin: Site

The wire two ends heat-shrink tubing inserting and connector crimping machine is cable to process wire two ends cutting, stripping, crimping, and heat-shrink tubing inserting.

Model: YH-710S

Features

Function: wire two ends cutting, stripping, crimping, and heat-shrink tubing inserting
It can realize wire double-end cutting, stripping, crimping or single end twisting and tinning
Two ends heat-shrink tubing inserting to the designated position, and double-end/single-end crimping can be achieved simultaneous
Terminal visual inspection and terminal pressure inspection system can be added

Contact us for details: sales@yuanhanequip.com

Operation video of the Shrinkable Tubing Inserting and Terminal Crimping Machine

Specifications

Model	YH-710S
Wire cutting length	75-9999mm (The shortest cutting length varies according to the crimping tool used.)
Functions	Cutting wire to fixed length, stripping at both ends, single head partial stripping, single end crimping, double ends crimping, heat-shrink tubing inserting
Work efficiency	Double ends heat-shrink tubing inserting: 1800-2000 pcs/h Single end heat-shrink tubing inserting: 3200-3500 pcs/h
Configuration	1.TBI Screw 2.SMC Cylinder 3.Takikawa Servo 4.HIWIN Slide
Detection	Lack of wire detection, heat-shrink tubing detection, wire knot detection, terminal crimping detection, air pressure detection
Dimension	L2660 * W800 * H1600mm
