UniStrip 2015 alternatives, YH-2015C Pneumatic Wire Stripper

Views: 389 Author: Site Editor Publish Time: Origin: Site

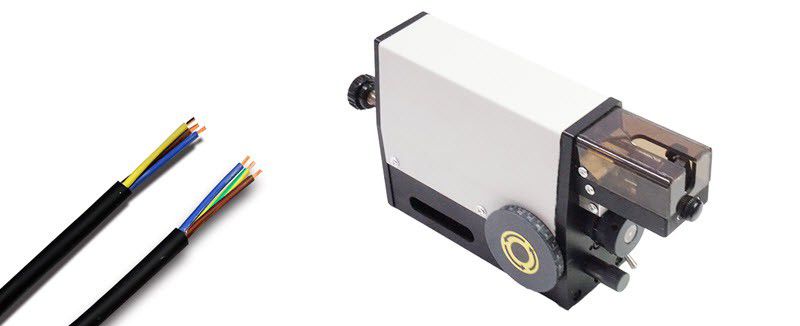

The YH-2015C is a pneumatic wire and cable stripper and the perfect solution for stripping discrete wires and small multi-conductor cables up to 0.12" (3.2 mm) O.D. The compact machine strips lengths up to 0.78" (20 mm).

Model: YH-2015C

UniStrip 2015 alternatives


Features

  • Suitable for stripping discrete wires and small multi-conductor cables

  • Extremely short cycle times

  • No need to change blade

  • Being able to strip very short cables

  • Easy-to-operate, robust and reliable

Contact us for details: sales@yuanhanequip.com


Operation video of YH-2015C Pneumatic Wire Stripper


Specifications

Model YH-2015C
Wire size range 0.03 – 2.08 mm² (32 – 14 AWG)
Max. outer cable diameter 3.2 mm (0.12“)
Stripping length
1-20 mm
Precision of diameter setting 0.01 mm (0.001“)
Cycle time approx. 0.3s
Dimensions (L x W x H) 265*70 *135 mm (10.4“ * 2.8“ * 5.3“)
Weight Net: 2.0 kg (4.4 lbs.)
Gross: 3.0 kg (7.7 lbs.)


×
