Pneumatic Cable Outer Sheath and Core Wires Stripping Machine

Views: 231 Author: Site Editor Publish Time: Origin: Site

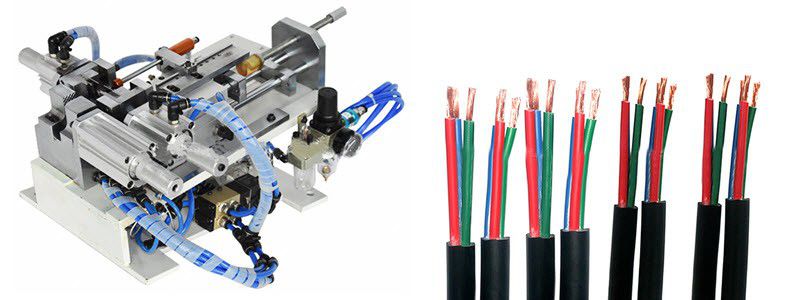

This pneumatic sheathed cable stripping machine can peel off the outer jacket and inner core jacket simultaneously. It changes the traditional processing technology of peeling the outer skin first and then peeling the inner core skin, saving time and efficiency. It is capable of precise stripping without causing damage to copper wires.

Model: YH-250H

Pneumatic Cable Outer Sheath and Core Wires Stripping Machine


Features

  • Precise stripping without causing damage to copper wires;

  • Peel off the outer jacket and inner core jacket at one time;

  • Unique slide, smooth reciprocating stroke, precise cutting;

  • Ergonomic hatchback design;

  • Double acting cylinder, no spring break;

  • The oil and gas self-supplied two-connected body is used to supply oil to the cylinder regularly, reducing internal wear of the cylinder and prolonging service life;

  • Gas-electric control, light and agile, easy to work;

  • Adjustable according to wire size;

  • Suitable for processing small wires and short wires, such as AC / DC cables, power cord, computer cables, multi-core cables, sheathed cables, etc.

Contact us: sales@yuanhanequip.com


Operation video of Pneumatic Cable Outer Sheath and Core Wires Stripping Machine


Specifications

Model YH-250H
Stripping ability Max.15mm
Stroke 100mm
Working pressure 4MP-0.8MP
Voltage 220V
Output 49-115KG
Outer jacket stripping length 8-100mm
Inner core stripping length 2-12mm
Weight 45KG
Dimensions 400*220*550mm


×
