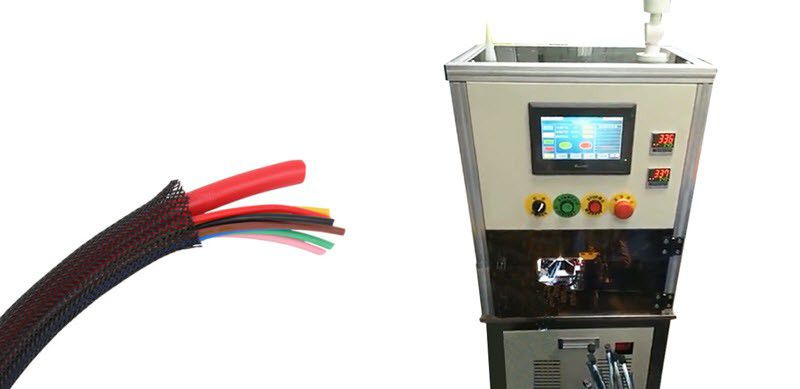

This automatic braided sleeving wrap-around machine is suitable for threading woven sleevings onto wire harness and cables.
This automatic braided sleeving wrap-around machine fuses the woven sleeving according to the set length and send it to the side of the hollow guiding tube for threading.
Fast speed, good threading effect, simple operation and precise cutting
Suitable for wrapping-around different types of braided sleevings onto wire harness and cables
It consists of a fine-tunable photoelectric control system and a PLC control system. The cutting length can be set, and the cutting performance is stable.
Applicable products: automotive wiring harness, electronic wire, medical wire, metal, wire and cable, etc.
Applicable industries: wire harness processing plant, electronics factory, electrical appliances, hardware, etc.
Contact us for details: firstname.lastname@example.org
Operation video of Wire and Cable Braided Sleeving Wrap-around Threading Machine
|Applicable sleeving||fiber sleeving (woven mesh sleeving), melt cut materials|
|Applicable wire range||custom type (the wire diameter does not exceed the pipe diameter)|
|Applicable guide tube range||diameter 12-25mm|
|Cutting length|| |
|Speed||no less than 1000PCS/hour (depending on sleeving size and manual operation speed)|
|Power||single phase AC 220V/50HZ|
|Operating ambient temperature||-5 ° C ~ +40 ° C|
|Relative humidity||(40 ~ 90)% RH|
|Access gas source||0.4~0.6MPA|
|Dimension||500W*1230L*1115H(mm) (subject to actual production)|
Special materials can be customized.
