Wire Cut Strip Terminate Machine

Views: 402 Author: Site Editor Publish Time: Origin: Site

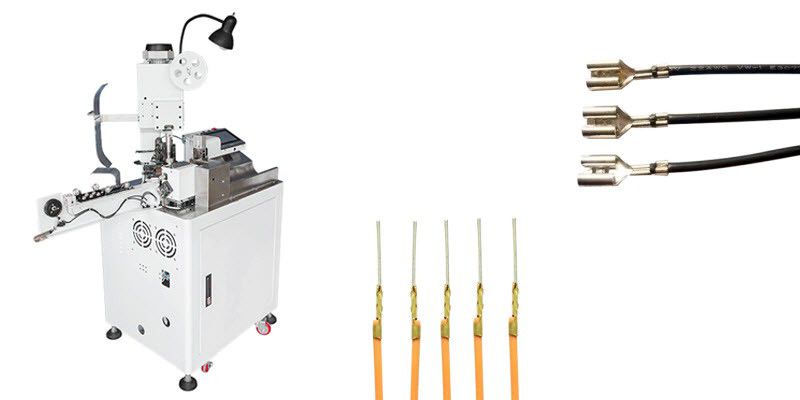

This fully automatic single head terminal crimping machine is able to process wire cutting, double-end stripping, crimping on one end, and twisting wire on one end. It can crimp various terminals onto single wire, two wires, thin wires, thick wires and parallel wires.

Model: YH-D01/YH-D02/YH-D03/YH-D04/YH-D05/YH-D06

Wire Cut Strip Terminate Machine

Contact us for details: sales@yuanhanequip.com


Operation video of the fully automatic wire cut strip terminate machine


Technical Details

Model

YH-D01

YH-D02

YH-D03

YH-D04

YH-D05

YH-D06

Type

General model

Two-wire model

Thin wire model

Gold pin model

Thick wire model

Parallel wire model

Product  features

wire cutting, double-end stripping, crimping on one end, twisting wire on one end

Machine capacity

3800-7600 pieces / hour

Wire cutting length

45-999mm

Wire stripping length

0-10mm

Wire twisting length

Backend 2-10mm

Suitable wire sizes

AWG18-28#

AWG18-28#

AWG20-32#

AWG18-28#

2.5mm2

AWG18-28#

Tool material

Imported tungsten steel / high-speed net

Pneumatic accessories

Standard AirTAC

Air pressure

0.5-0.7MPA

Power

AC 220V

Machine size

700(L)*600(W)*1500(H)mm(Not including packing)

Weight

About 240KG

×
