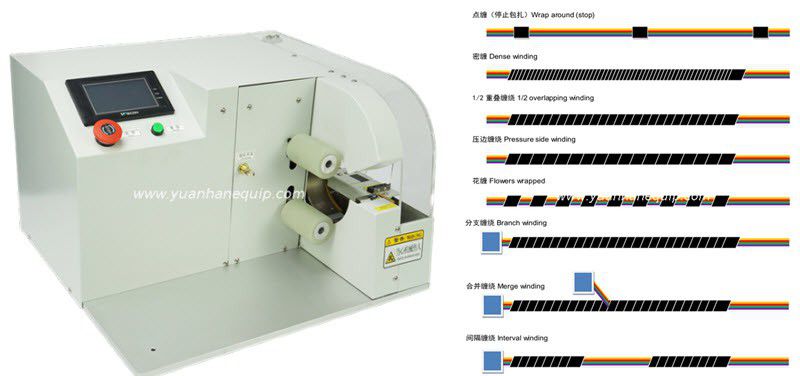

Wire Harness Cable Overlap Taping and Spiral Taping Machine

Views: 1721 Author: Site Editor Publish Time: 2021-08-24 Origin: Site

This is a professional wire harness cable overlap taping and spiral taping machine used for wire harness tape winding. It winds the tape around the wire for automobile, motorcycle and aviation, and plays the role of marking, fixing and insulation. AT-3608 is an intelligent automatic tape wrapping machine, which provides automation for the molding, placement and winding of complex wire bundles and improves production efficiency.

Model: AT-3608

Wire Harness Overlap Taping and Spiral Taping Machine

Features

Used for winding the tape around the cable for automobile, motorcycle and aviation, and plays the role of marking, fixing and insulation
Provides automation for the molding, placement and winding of complex wire bundles and improves production efficiency

Operation video of the Wire Harness Overlap Taping and Spiral Taping Machine

Technical Data

Model	AT-3608	AT-3608 Plus
Available Wire Harness Dia.	φ3-30mm	φ3-40mm
Tape Width	2-30mm	2-30mm
Wrapping Length	No limitation	No limitation
Power Supply	110/220VAC, 50/60Hz	110/220VAC, 50/60Hz
Dimension	655240cm	626155cm
Weight	48kg	72kg
Note	Can be customized according to customer requests.

Get a free quote for your project. Click here.
