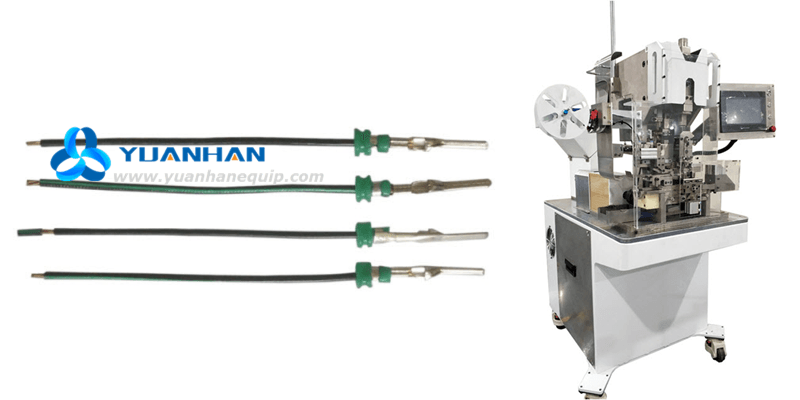

Wire Seals Inserting and Delphi Terminals Crimping Machine

Views: 641 Author: Site Editor Publish Time: Origin: Site

This semi-automatic wire processing machine adopts a linear module to process wire stripping, wire rubber seals loading, and crimping in an orderly combination, and each function can be used independently.

Model: YH-F2000

Wire Seals Inserting and Delphi Terminals Crimping Machine

Features

  • Function: wire rubber seals loading, wire stripping and crimping. Each function can be used independently.

  • Saving labor and improving working efficiency

  • Stripping length can be adjusted digitally

  • Wire seals loading depth can be adjusted according to the data of the glue position between the stripping and the rubber seals

  • The depth of the crimping end rubber can also be adjusted according to the position of the top line.

  • The crimping machine adopts high efficiency servo motor drive, which can process high speed crimping with stable pressure

  • The stripping slide is driven by screw to ensure the peeling length is accurate

  • The cutting mechanism is driven by motor and screw, and the cutting depth can be adjusted digitally.

  • The seals feeding structure is simple and easy to replace, meeting the requirements of customers with various types of products.

  • The machine is easy to operate, stable in quality and concentrated in function.

Contact us: sales@yuanhanequip.com


Operation video of the Wire Seals Inserting and Delphi Terminals Crimping Machine


Technical Data

Model
YH-F2000
Stripping length 0-10.0mm
Applicable wire size 0.2-2.5mm²
Suitable wire seals ≤Dia.10×10
Cutting error
±0.02mm
Crimping capacity 3T
Stroke 40mm
Output
1000-1200 piece/H
CT
1 pcs / 3s
Air source 0.5~0.7mpa
Power supply 110/220VAC,50/60Hz
Weight 300kg
Dimensions
85*88*130 cm


×
