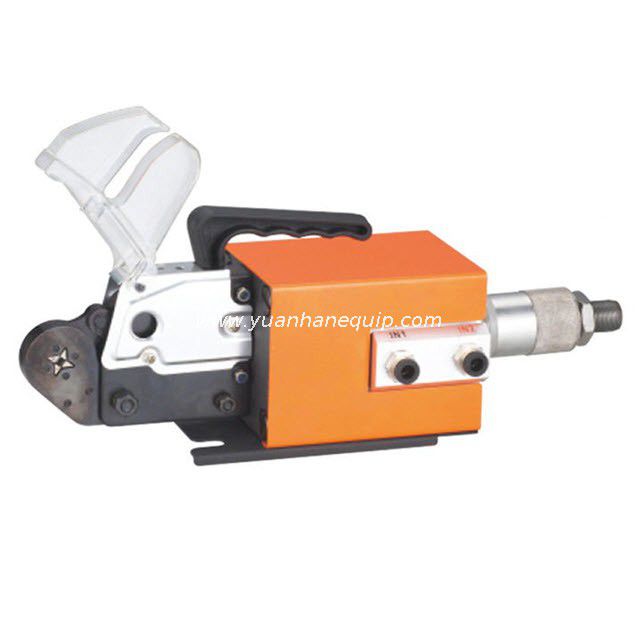

AM6-4 Pneumatic Wire Crimping Tool

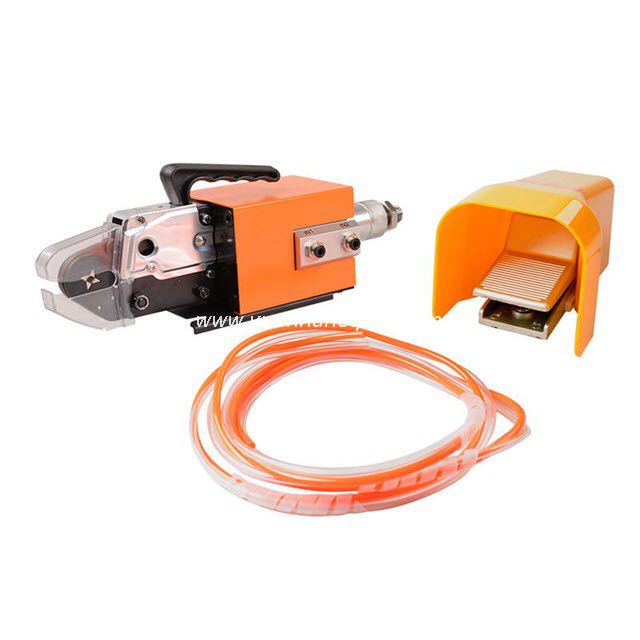

The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed. The machine is fit crimping insulated and non-insulated cable end-sleeves. Accessories: one foot air valve, two air pipes.

Model:
  • AM6-4
Brand:
  • Yuanhan
Share to:
Features
Specifications

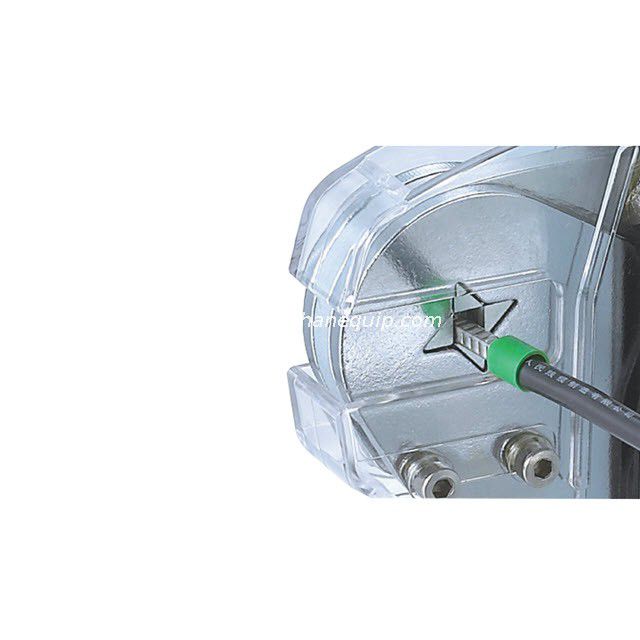

  • The traditional fixed mould is replaced by the square crimping mould, which may perform flexible crimp connection to tubular insulated terminals.

  • Since the square can be adjusted steplessly, the crimping specification can be set freely within 0.08-6mm².

  • After crimping, the terminals look beautiful in hexagon without any flash edge.

ModelAM6-4
Range of applicationferrules terminals 0.08-6mm²
Output force13.5KN
Applicable air pressure0.4-1Mpa
Dimensions350mm×220mm×140mm
Weight5kg



×
