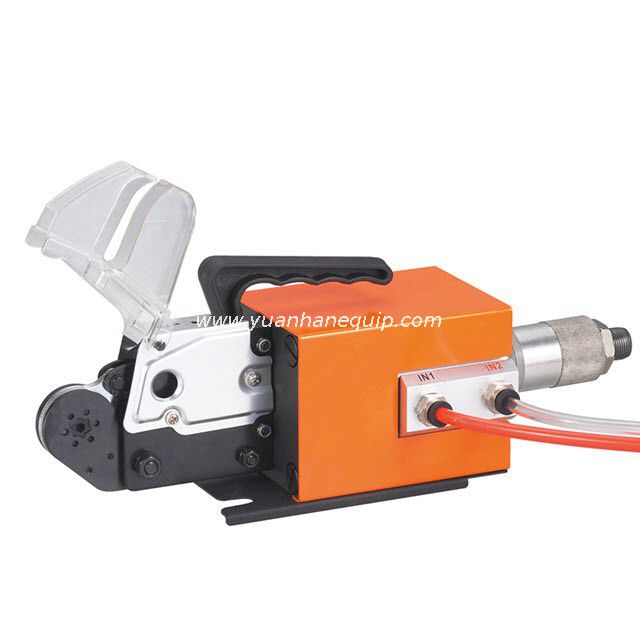

Pneumatic Tubular Terminal Crimping MachinePneumatic Tubular Terminal Crimping Machine

The machine is driven by a dual-action normal cylinder, which has the advantages of good crimping force, high speed and high efficiency. The machine is suitable for crimping insulated and uninsulated cable end sleeves. Accessories: One foot air valve, two air tubes.

Model:
  • AM6-6
Brand:
  • Yuanhan
Share to:
Features
Specifications

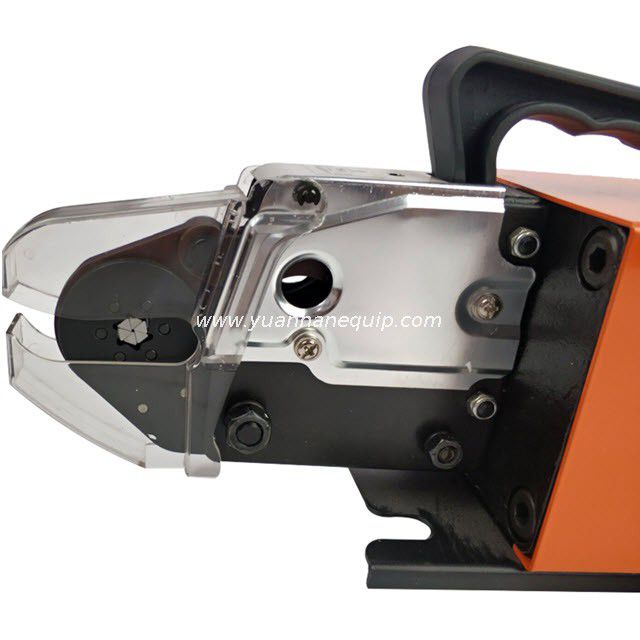

  • The traditional fixed mould is replaced by the hexagonal crimping mould, which may perform flexible crimp connection to tubular insulated terminals.

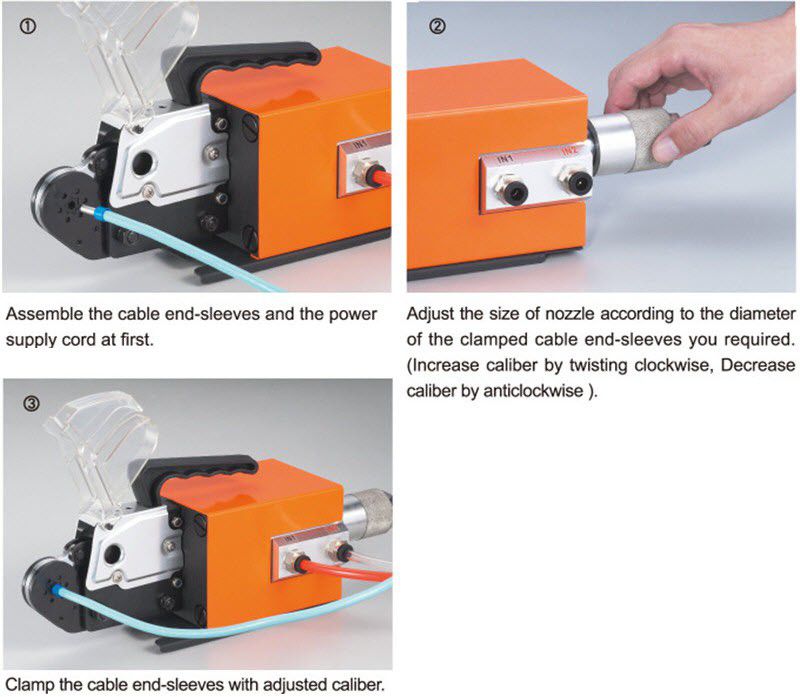

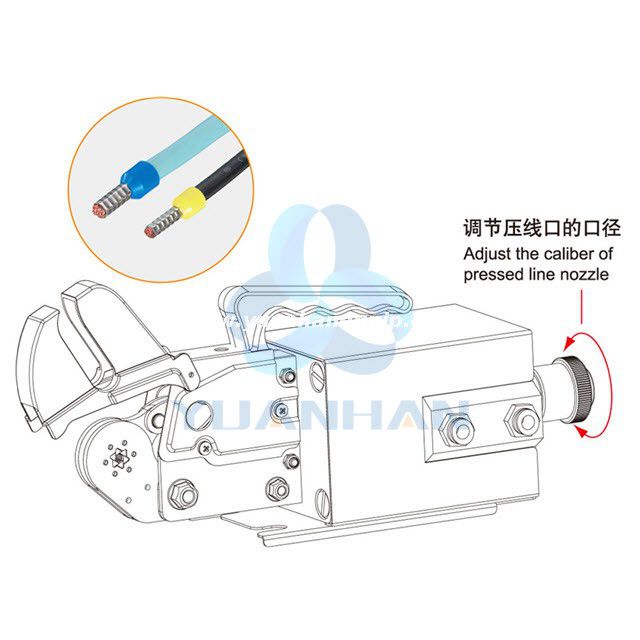

  • Since the hexagon can be adjusted steplessly, the crimping specification can be set freely within 0.08-6mm2.(As Step 2)

  • After crimping, the terminals look beautiful in hexagon without any flash edge.

Air Powered Tubular Terminal Crimper AM6-6

ModelAM6-6
Range of applicationtubular terminals 0.08-6mm2
Output force13.5KN
Applicable air pressure0.4-1Mpa
Dimensions260mm x 120mm x 140mm
Weight5kg


×
