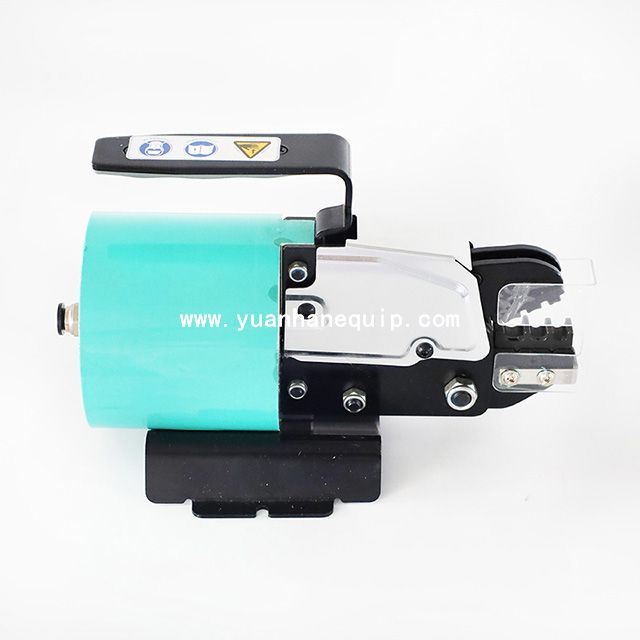

Pneumatic Wire Connector Crimping Machine

This pneumatic wire ferrules terminal crimping machine is suitable for pressing different wire connecters with different crimping modules. Crimping wire range: 0.25-6.0 sqmm.

Model:
  • YH-5ND
Brand:
  • Yuanhan
Share to:
Features
Specifications

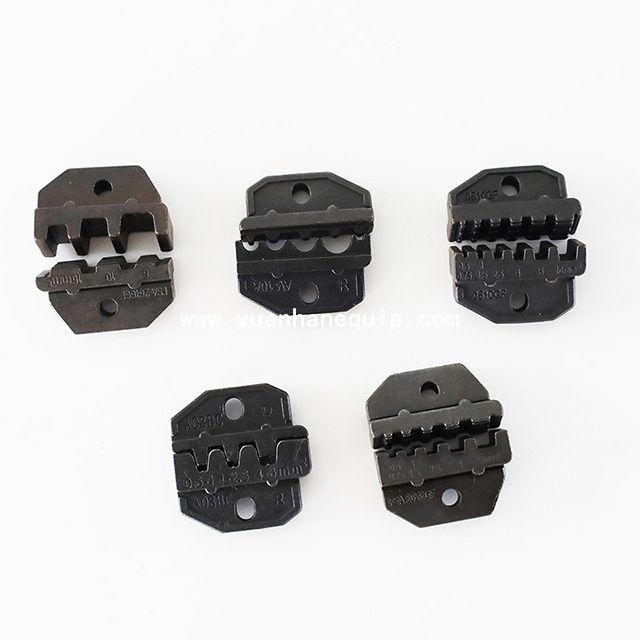

  • Different terminals can be crimped with different crimping modules

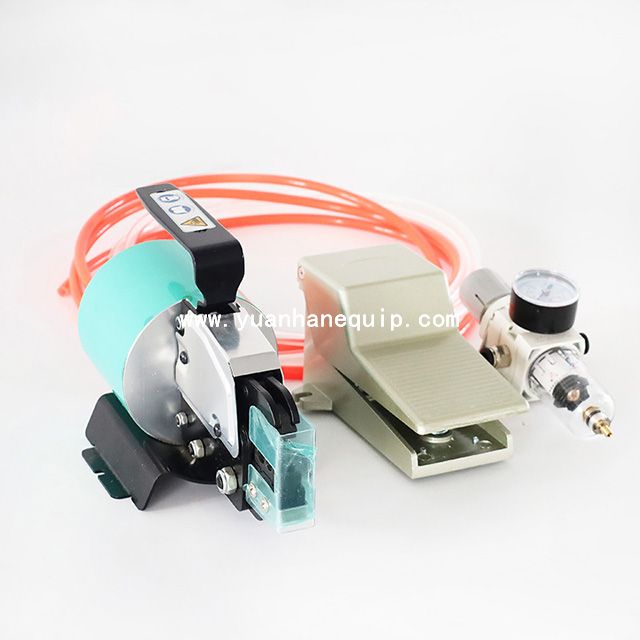

  • Normal or pressure-protected foot switch is available

  • Equipped with a pressure regulator to ensure precise crimping

  • Lightweight and portable, easy and quick crimping to ensure high efficiency operation

  • Speed: 1200 times per hour

  • Ferrule insertion on the side of the tool

  • Self-adjusting adaptation to the desired end sleeve(ferrule)size, no wrong crimps caused by using the wrong die

  • Chrome vanadium electric steel in special quality, oil-hardened

Model
YH-5ND
Crimping range0.25-6.0mm2 (wire size)
Air pressure range0.5-0.6MPa
Output1.3T
Dimension230x187x100mm
Weight2.0kg


×
