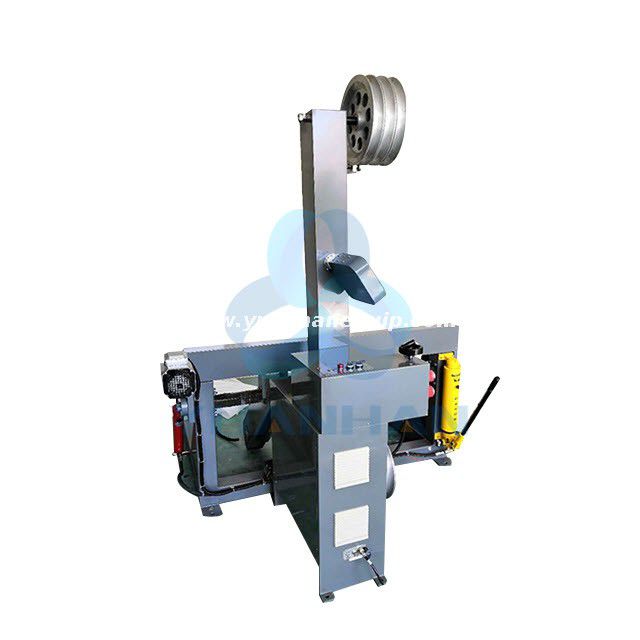

Automatic Wire Spool Dereeler Machine

This is an automatic wire spool dereeler machine used for pre-feeding wires to wire cutting and stripping machines.

Model:
  • YH-800W
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This machine is used for automatically feeding wires and cables for wire and cable cutting & stripping machines.

  • When the wire cutting and stripping machine works, the tension wheel moves accordingly, and the potentiometer rotates through the sprocket, and the potentiometer feeds back the signal to the inverter to control the speed of the pay-off motor, thereby controlling the speed of the wire-feeding to be synchronized with the wire cutting and stripping machine.

ModelYH-800W
Maximum reel weight800KG
Max. wire dia.38mm
Coil outer diameter500-800mm
Coil inner diameter53-85mm
Coil clamping width320-620mm
PackingWooden case
VoltageAC110C/220V 50/60HZ
Weight450KG
Packing size1850x2050x1560mm
Coil liftingManual operation loading and unloading reel
Function

Cable and wire pre-feeding for wire cutting stripping machines


×
