Kunshan Yuanhan Electronic Equipment Co., Ltd.

Wire Shield Brushing and Twisting Machine with Strong PowerWire Shield Brushing and Twisting Machine with Strong Power

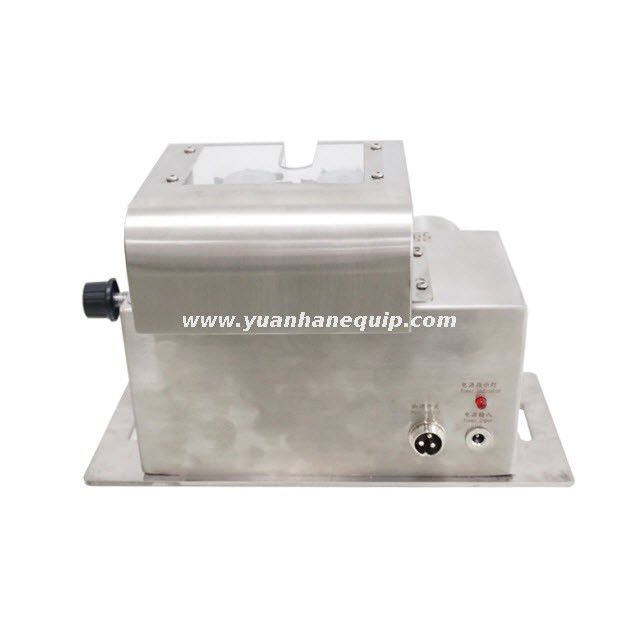

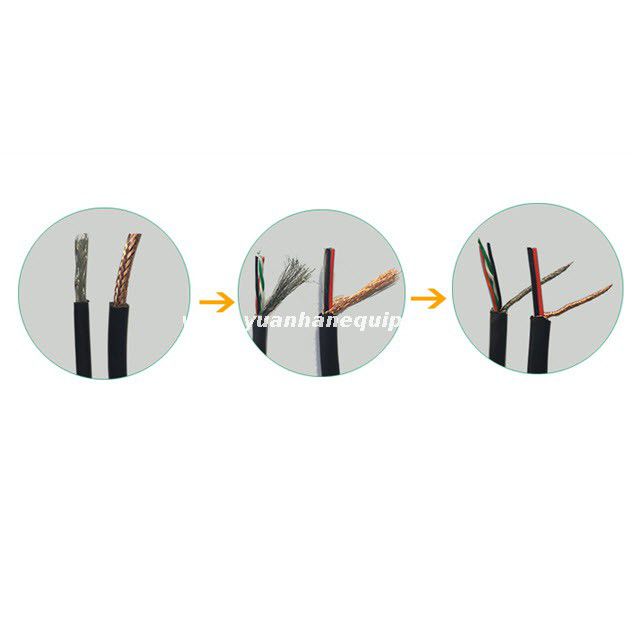

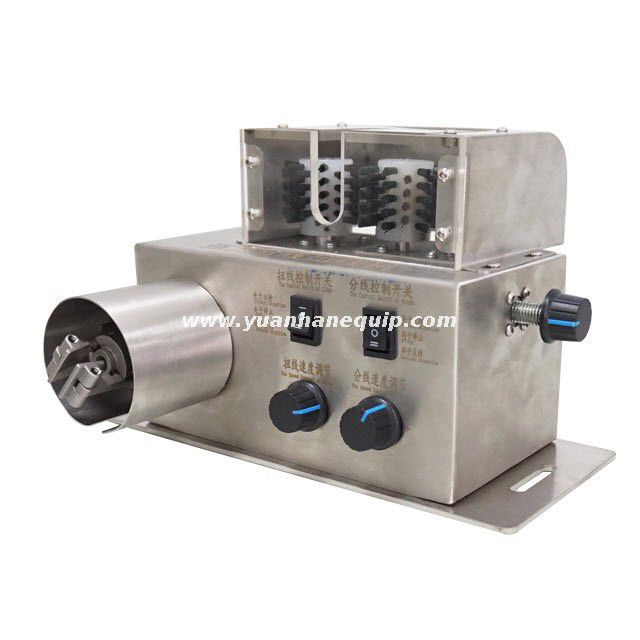

This wire shield separating and twisting machine is mainly used for brushing the outside braid of shielded cable. It can brush and twist cable braid layer all-in-one. It is a common and necessary equipment for wire harness processing. The machine can be used for processing different kinds of ground cables, braided cables, shielded wires, etc.

Model:
  • ZT-3008
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • The cable shield brushing and twisting machine can brush and twist cable braid layer simultaneously.

  • The machine can be used for processing different kinds of ground cables, braided cables, shielded wires, etc.

ModelZT-3008
Working voltageAC220v/50hz
Working pressure4-6kg/cm
Splitting length≤30mm
Motor power10W
Twisting length10-30mm
Gross weight3.8KG
Overall dimension340*190*170mm


×
