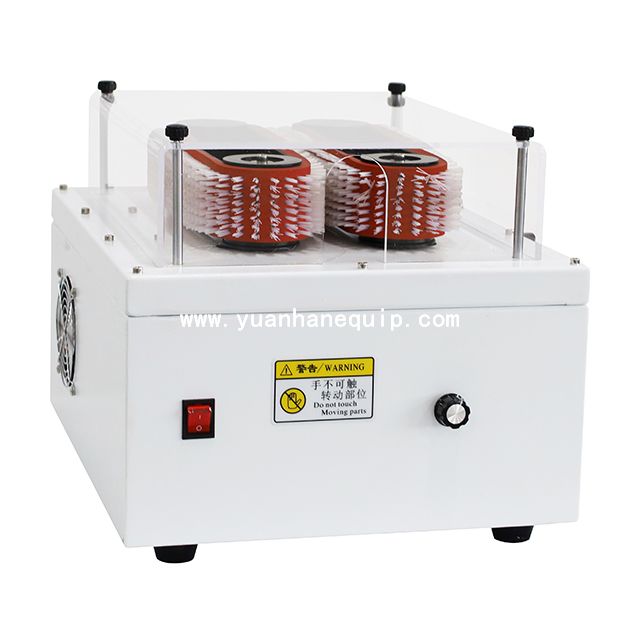

Shielded Wire Braided Mesh Brushing MachineShielded Wire Braided Mesh Brushing Machine

This machine can process coaxial cables and special cables with a length of 200mm and an outer diameter of 30mm.

Model:
  • YH-SX50
Brand:
  • Yuanhan
Share to:
Features
Specifications

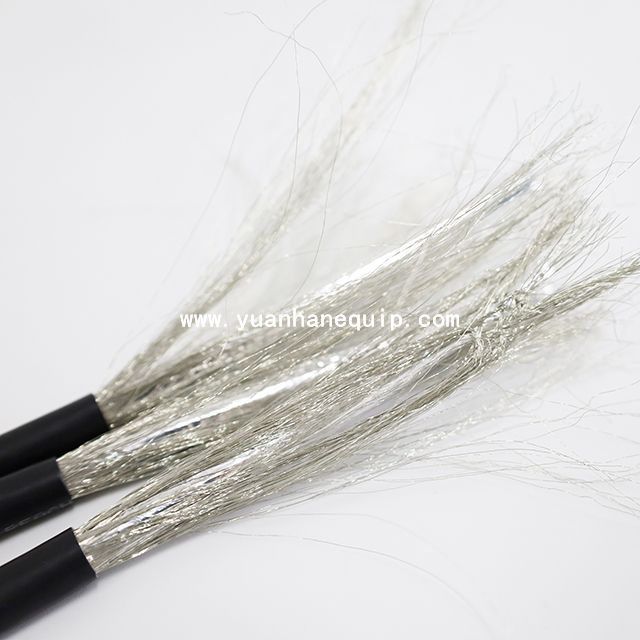

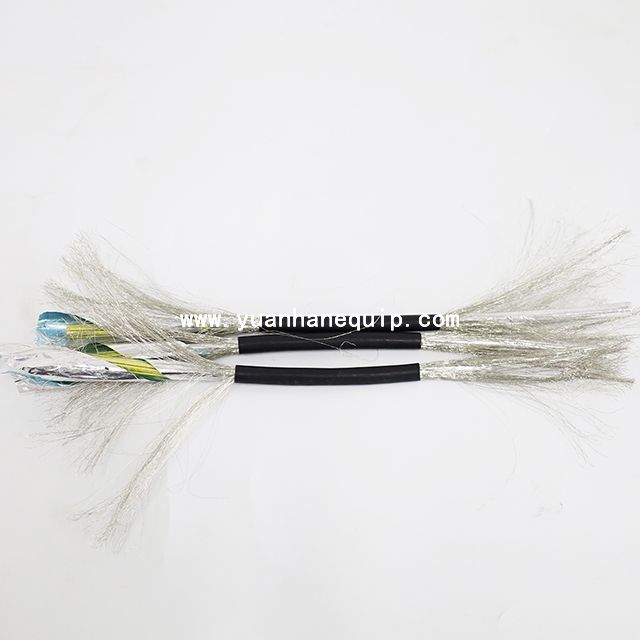

  • Shielded wire woven mesh brushing machine can process coaxial cables and special cables with a length of 200mm and an outer diameter of 30mm. Wire braid brushing can be processed continuously.

  • The operation mode is manual insertion.

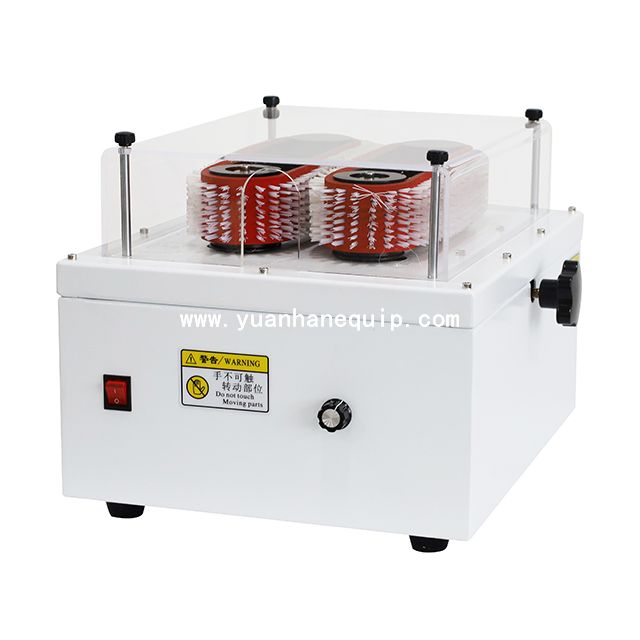

  • This machine is convenient and quick. If you need to adjust the pulley spacing during the machining process, just turn the rotating handle on the right side of the fuselage.

  • The electronic part and the mechanical part of the machine are assembled separately, so it is easy and convenient to carry out maintenance and inspection in the future.

  • This machine is designed with a safety cover to protect the operator.

ModelYH-SX50
Brushing wire length10-200mm
Applicable wire diameter100 sq mm
Productivity100-200pcs/h (depending on cable type and program)

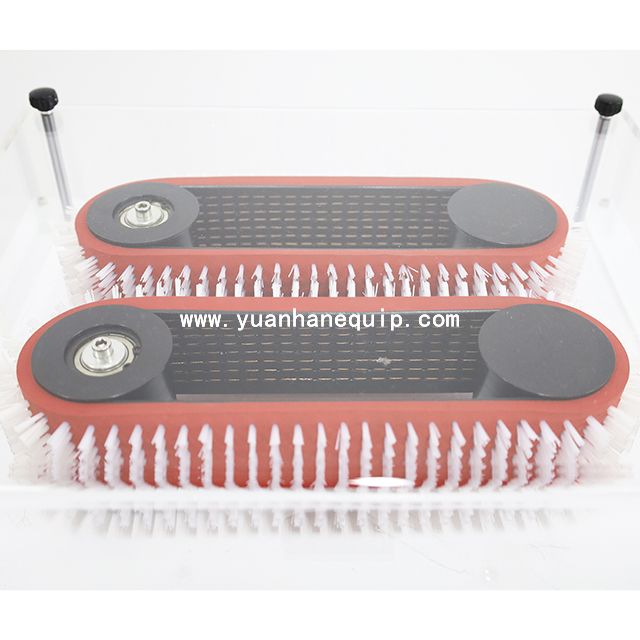

Breaking structurerotating belt wheel (pulley)
Rotation modeelectronic control (0-1800 adjustable)
Belt wheel (pulley)2 pieces (circumference 750*width 62)
Torque12.5kg
Power supplyAC220-240V,50-60Hz
Driverelectric
Weight48kg
Dimensions420*480*320mm


×
