Cable and Wire Labeling Machine
Cable and Wire Labeling Machine
Cable and Wire Labeling Machine
Cable and Wire Labeling Machine

Cable and Wire Labeling MachineCable and Wire Labeling Machine

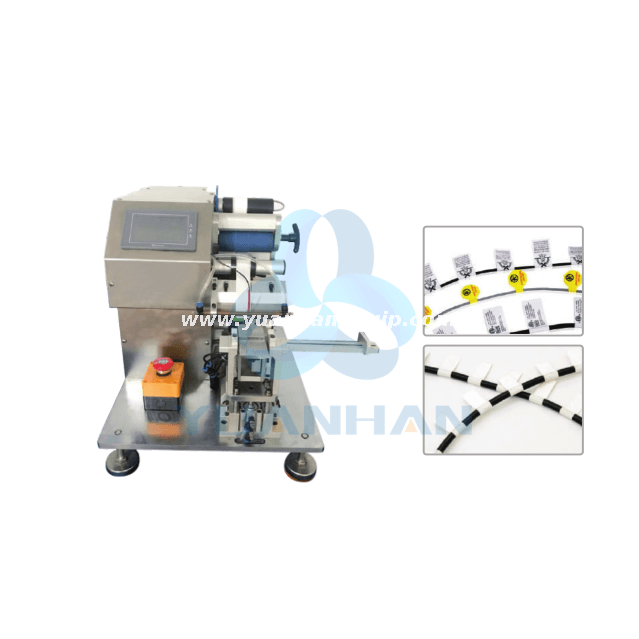

This wire and cable labeling machine is a new type of patented automatic equipment for attaching the label film on the bottom paper to the cable. It is suitable for headphone wire labeling, power cord labeling, light soldering labeling, cable labeling, air tube labeling, and USB cable labeling.

Model:
  • ZCUT-330
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

  • This machine is a new type of patented automatic equipment for attaching the label film on the bottom paper to the cable. It is suitable for cable labeling of various specifications.

  • Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.

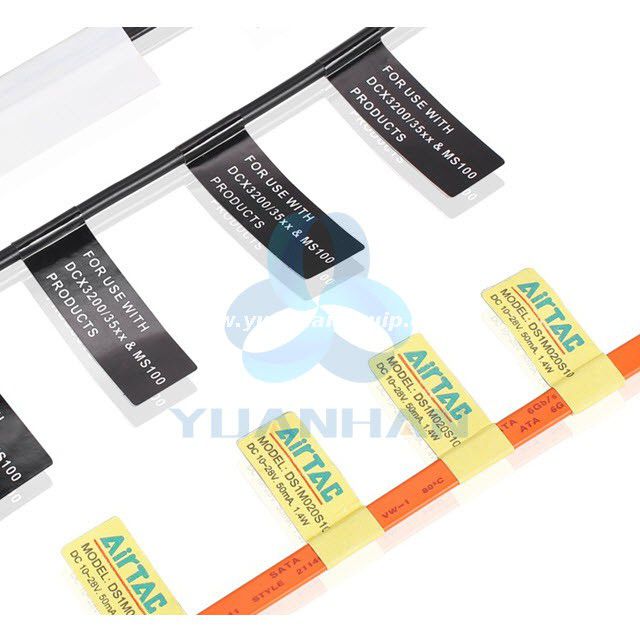

  • Application examples: headphone wire labeling, power cord labeling, light soldering labeling, cable labeling, air tube labeling, USB cable labeling, etc.

  • The labeling effect is good, the operation is convenient, and the material belt is easy to change.

  • High labeling efficiency and accurate labeling

ModelZCUT-330
Labeling accuracy±0.30mm
Winding rangeNormal min 4mm(1-3mm customizable)
Applicable label range

Width: 8-65mm;

Length:40-165mm (out of range can be customized)

Weight65kg
Dimensions650*600*670mm
Labeling speed1000-1200 pcs/h depending on the size of the label and the speed of manual operation
