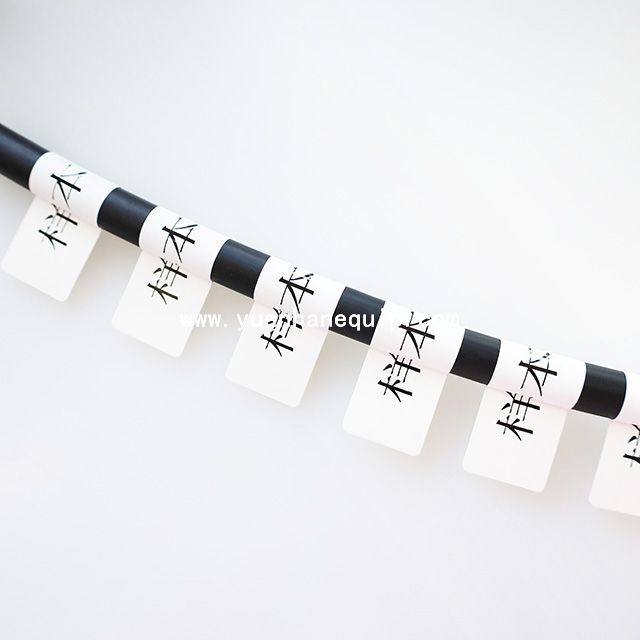

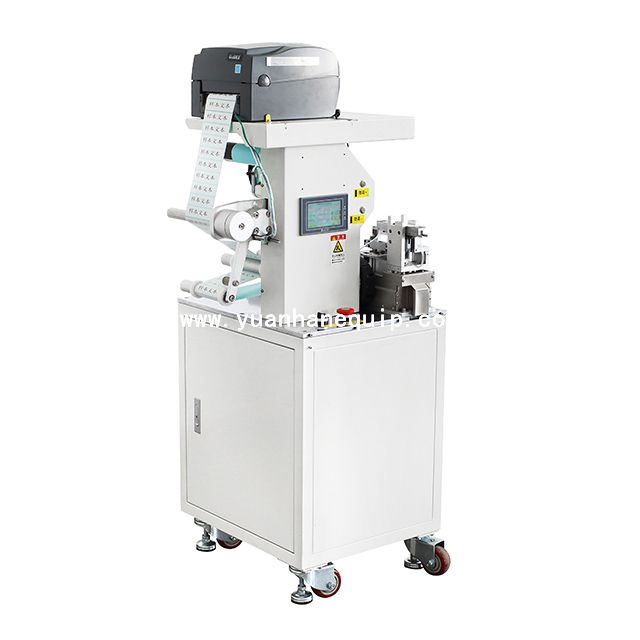

This label printing and folding machine for wire harness can print labels as requests, and fold labels, barcodes, etc. onto cables and wires automatically. It is widely used in electronics industry, wire & cable industry, food and other industries.

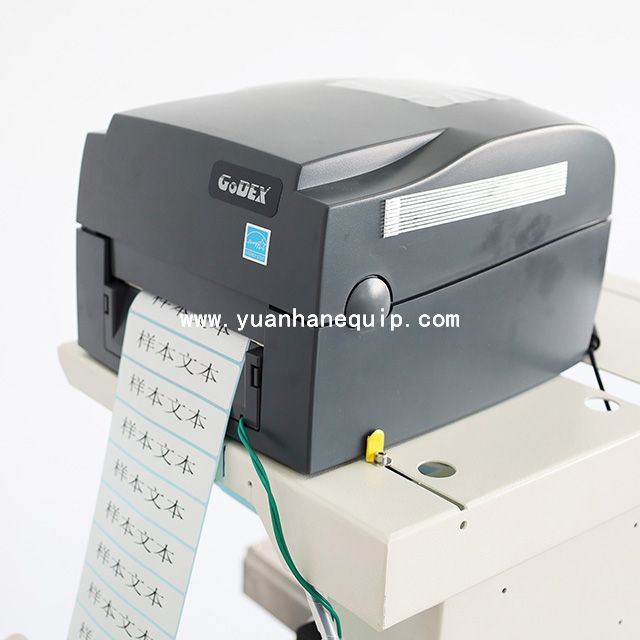

○ Printer can be installed for label printing;
○ Servo motor for precise positioning;
○ German SICK label electric eye quickly senses the label gap to complete labeling and complete the identification;
○ Reasonable mechanical structure design ensures smooth and stable label delivery;
○ Convenient application, can be adjusted in a wide range, realize the folding and labeling of different specifications of wire harness products;
○ You don’t need to twist the screws to adjust the machine, just input the label size and wire diameter directly on the display.
○ The labeling effect is good, the labeling efficiency is high, the operation is convenient, and the material belt is easy to replace. It is suitable for labeling various specifications of cables.
○ Applicable industries: electronics, wire, electrical appliances, electromechanical,
○ Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;
○ Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
○ Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable labeling, tracheal labeling, warning label labeling, etc.
|Applicable wire range||
φ0-3.5，φ3.0-5.5，φ4.0-10mm, need to customize exceeding 10mm
|Labeling accuracy||±0.2 (excluding product and label errors)|
|Labeling speed||1500-1800pcs/H(depending on label size and manual operation speed)|
|Applicable product size||all kinds of round wires, flat wires, water pipes and other product|
|Applicable label size||standard model length: 20mm～180mm (need to customize beyond the scope)|
|Applicable label size||standard model width: 5mm～45mm; (need to customize beyond the scope)|
|Equipped with standard positioning ruler||200mm (need to customize beyond the scope)|
|Max label roll outer diameter||240mm|
|Max label roll inner diameter||76mm|
|Dimensions||about 580mm*680mm*1000mm (length*width*height)|
|Power supply||220V/50HZ, 0.25KW|
