Kunshan Yuanhan Electronic Equipment Co., Ltd.

Cable Prefeeder Dereeler Machine

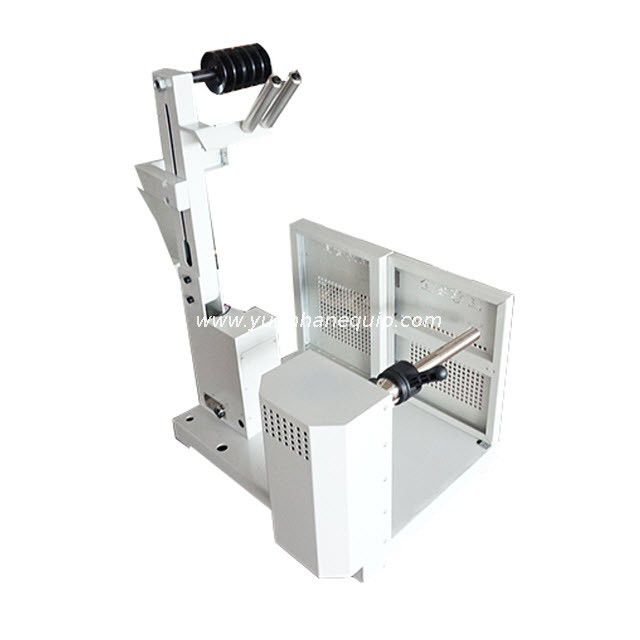

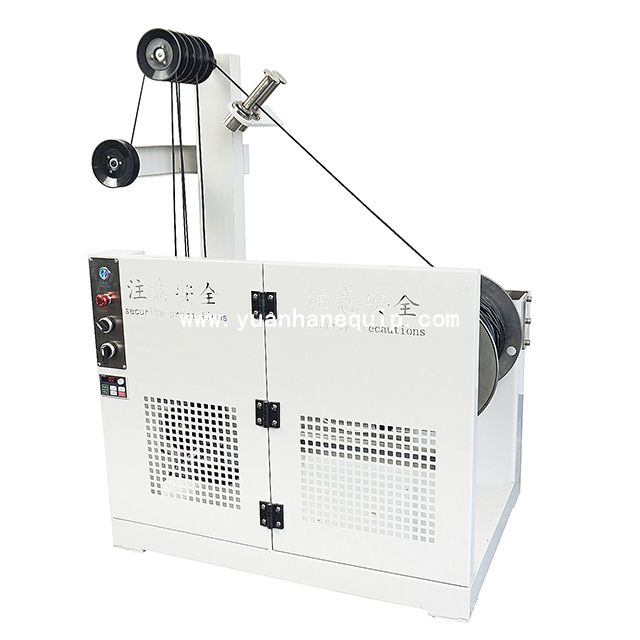

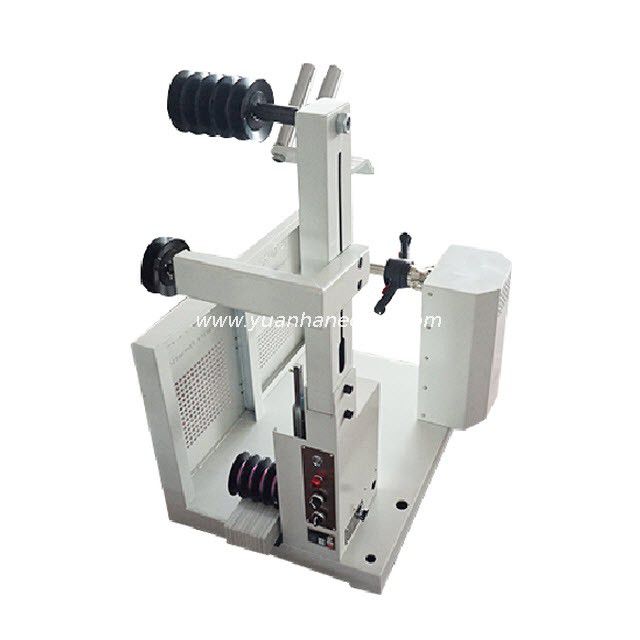

The wire and cable prefeeding dereeler machine handles 600 mm reels weighing up to 60 kg and is ideal for tension-free prefeeding to an automatic wire and cable processing machine.

Model:
  • YH-830
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.

  • Main body material: welded with high quality national standard rectangular tube, the structure is firm and the appearance is beautiful

  • Maximum feeding speed is 4 m/s, and maximum wire diameter is 18mm

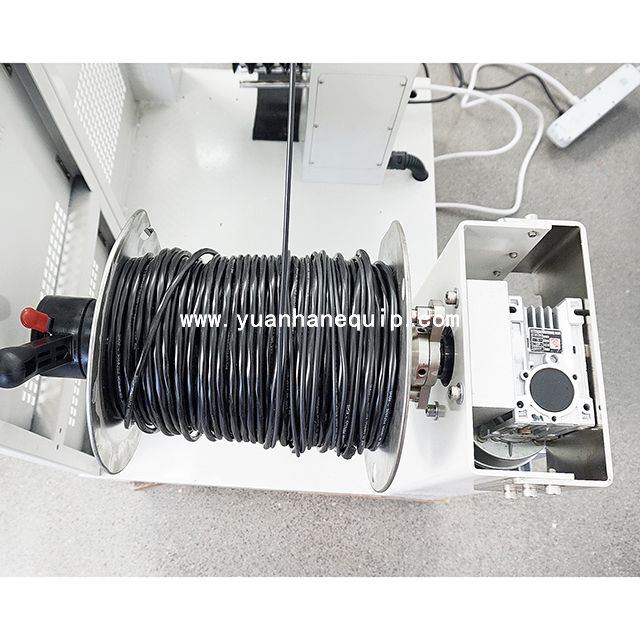

  • Cable spool max diameter: 600mm

  • Max load weight: 60kg

ModelYH-830
FunctionHigh-speed feeding and rewinding cable and wire
Feeding cable typeWire, cable, PVC cable, etc.
Cable range0.5-10mm2
Speed0-4M/s
Cable max diameterΦ18
Cable spool max diameter600mm
Max load weight60kg
Induction typeproximity switch, multi-speed
Drive typeInverter + motor + reducer
Remarks

The machine can be customized for processing special cables,

and the sample cable should be sent to us for test.


×
