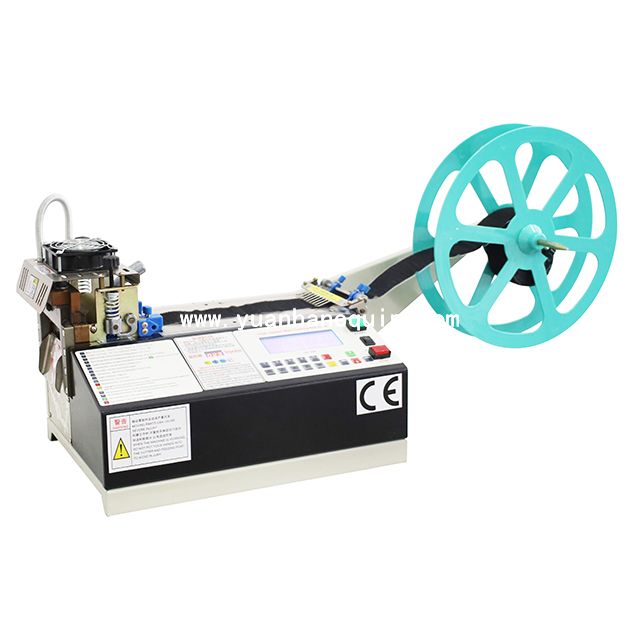

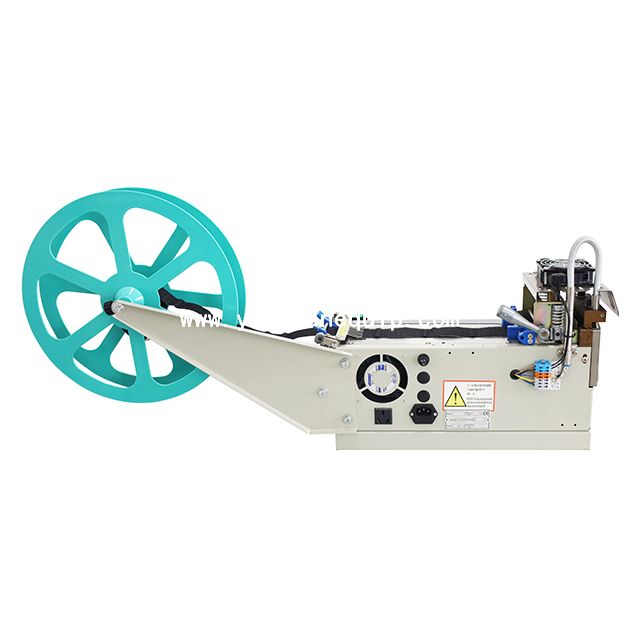

Automatic Hot and Cold Webbing Tape Cutting Machine - High Speed Model

Automatic Hot and Cold Webbing Tape Cutting Machine - High Speed Model

This is a high speed hot-cold webbing tape cutting machine. It is suitable for cutting woven belt, nylon buckles, lining, fabric tape without heat seal, plastic zipper, metal zipper, plastic lace, PVC tube, leather, aluminum platinum, PS material and so on. The cutting speed is 300 pcs/min.

Model:	ZCUT-120LH High Speed
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

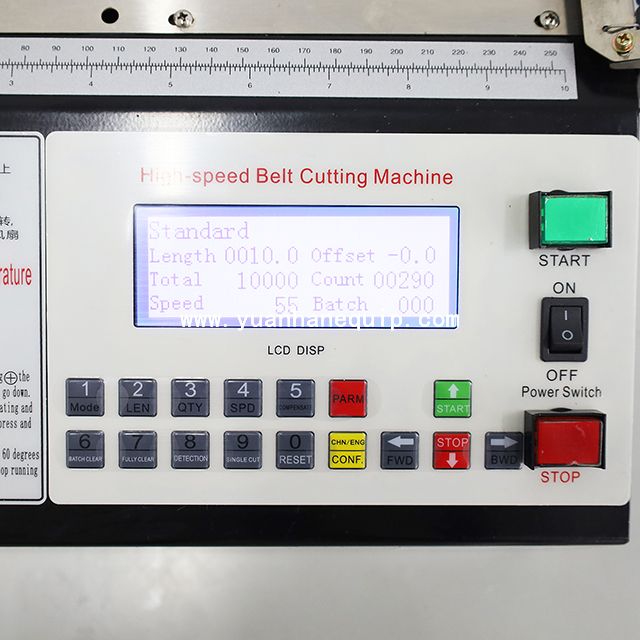

○ Easy Operation: it can cut automatically once set up the cutting length and quantity.

○ Self-protection Function: It will stop automatically if the materials run out during the operation.

○ High Speed: It can cut 300pcs per minute(50mm length for example)

○ High Accuracy: using stepping motor, the cutting length is accurate

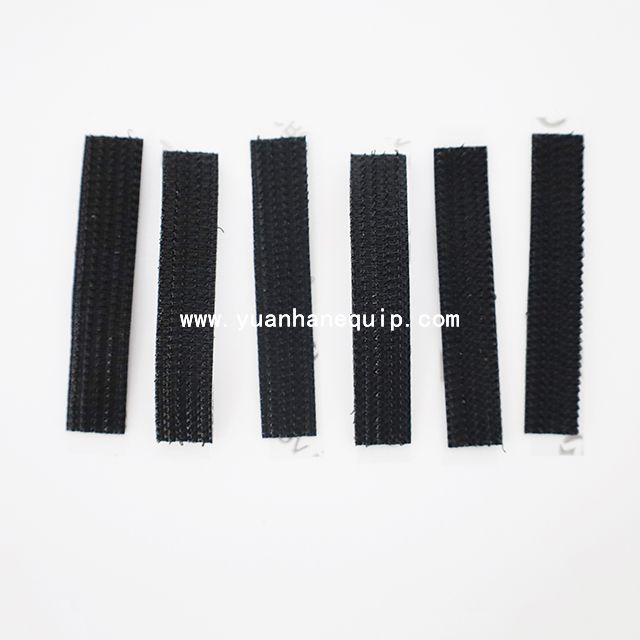

○ Application: woven belt, nylon buckles, lining, fabric tape without heat seal, plastic zipper, metal zipper, plastic lace, PVC tube, leather, aluminum platinum, PS material and so on.

○ We offer a variety of special blades so you can get different shapes of cutting edges.

Model	Cut length (mm)	Max cut width (mm)	Cut Speed (pcs/min)	Weight (kg)	Voltage /frequency (V/Hz)	Rating power (KW )	Knife max temperature(°C)	Packing size (mm)
ZCUT-120LH	1-99999	100	300	26	110V/220V50/60	0.5	350	450350350
ZCUT-101	1-9999	1-105	100-120	21	220V	0.4	cold	500350350
ZCUT-102	1-9999	100	100-120	26	110V/220V50/60	0.5	350	450350350
ZCUT-102A	1-9999	100	100-120	26	110V/220V50/60	0.5	cold	450350350
ZCUT-130	1-99999	95	100-120	26	110V/220V50/60	0.5	250	500350350
ZCUT-150	1-99999	105	100-120	21	220V	0.4	cold	500350350
