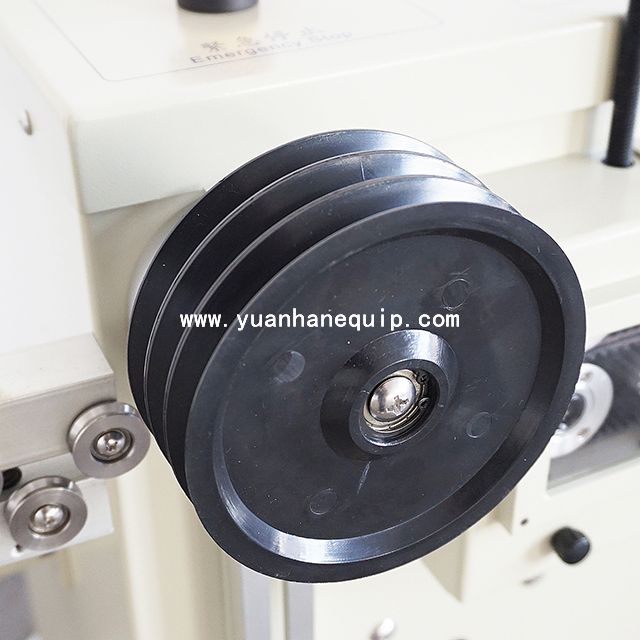

This wire prefeeding machine is the perfect choice for the optimum feeding of coaxial cables from reels. The adjustable feed belt pressure prevents damage to the material during transport. A moveable dancer pulley allows the wire prefeeding machine to easily respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines.
Model:
|
|
Brand:
|
|

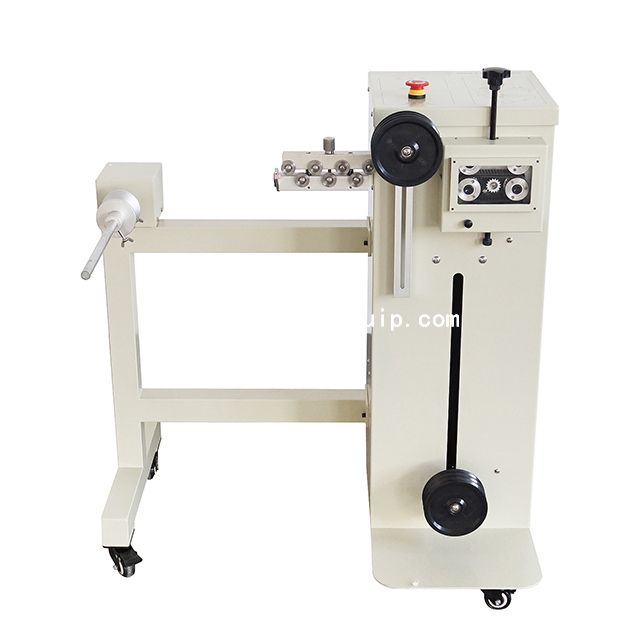

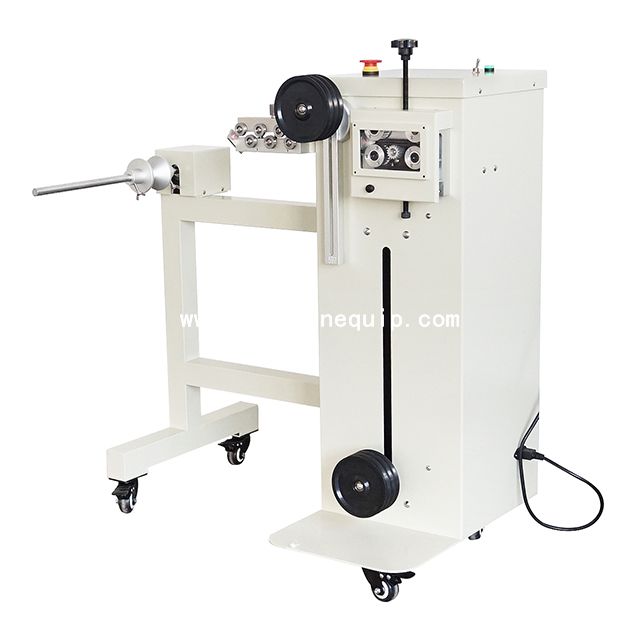

This wire prefeeding machine is specially designed for automatically feeding cables to coaxial cable stripping machine. It ensures that the wire is always in a state of uniform relaxation and improves the wire feeding precision of the automatic coaxial wire stripping machine.

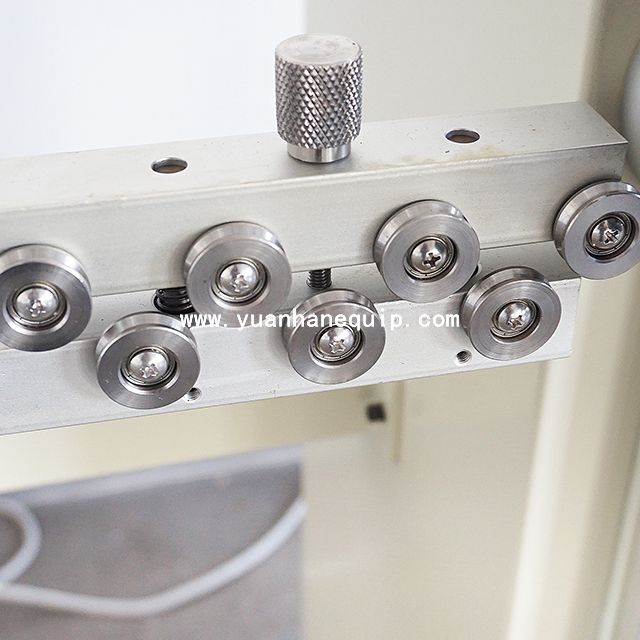

Built-in 2 sets of motors and multiple sets of sensors, the middle section is equipped with a wire straightener, which can automatically straighten the wire at the same time as the wire is fed.
Model | YH-K203 |
Available wire size | Φ0.6-5mm |
Max. feeding speed | 2.5m/s |
Max. reel weight | 25kg |
Power supply | 220V/50Hz |
Weight | 40kg |
Dimension | 830x550x950mm |
